BACK DOOR LOCK INSTALLATION

CAUTION / NOTICE / HINT

Note:

  • When installing a new back door lock assembly, if there is anytape stuck to it, remove the tape.

  • When installing a new back door lock assembly, if there are anystrings attached to it, cut the strings off.

  • Do not allow grease or dust to adhere to the door lock wiring harness seal surface of the connector.

PROCEDURE

  1. INSTALL BACK DOOR LOCK ASSEMBLY

    1. Apply MP grease to the sliding parts of the back door lock assembly.

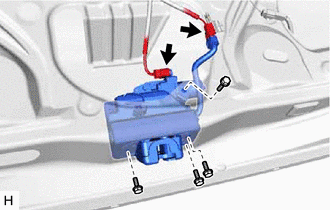

    2. B421521

      w/ Power Back Door:

      1. Install the back door lock assembly with the 4 bolts.

      2. Install the 4 bolts.

        7.0 N*m

        71 kgf*cm

        62 in.*lbf

      3. Connect the 2 connectors.

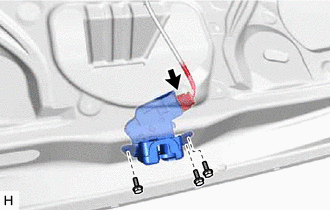

    3. B421522

      w/o Power Back Door:

      1. Install the back door lock assembly with the 3 bolts.

        7.0 N*m

        71 kgf*cm

        62 in.*lbf

      2. Connect the connector.

  2. INSTALL BACK DOOR TRIM BOARD ASSEMBLY

    Click here

  3. INSTALL BACK DOOR SIDE GARNISH LH

    Click here

  4. INSTALL BACK DOOR SIDE GARNISH RH

    Click here

  5. INSTALL BACK DOOR CENTER GARNISH

    Click here
