TELEVISION CAMERA INSTALLATION

PROCEDURE


  1. INSTALL REAR TELEVISION CAMERA ASSEMBLY

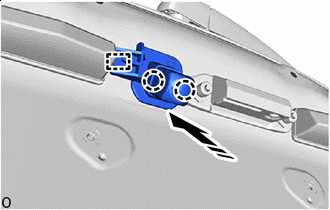

    1. A001XF7C01
      B008LJK Install in this Direction

      Engage the claws and guide to temporarily install the rear television camera assembly as shown in the illustration.

    2. Install the nut.

      Torque:
      4.9 N*m  { 50 kgf*cm, 43 in.*lbf }

    3. Connect the connector.

  2. INSTALL BACK DOOR GARNISH OUTSIDE

    Click here
