ENGINE ASSEMBLY COMPONENTS

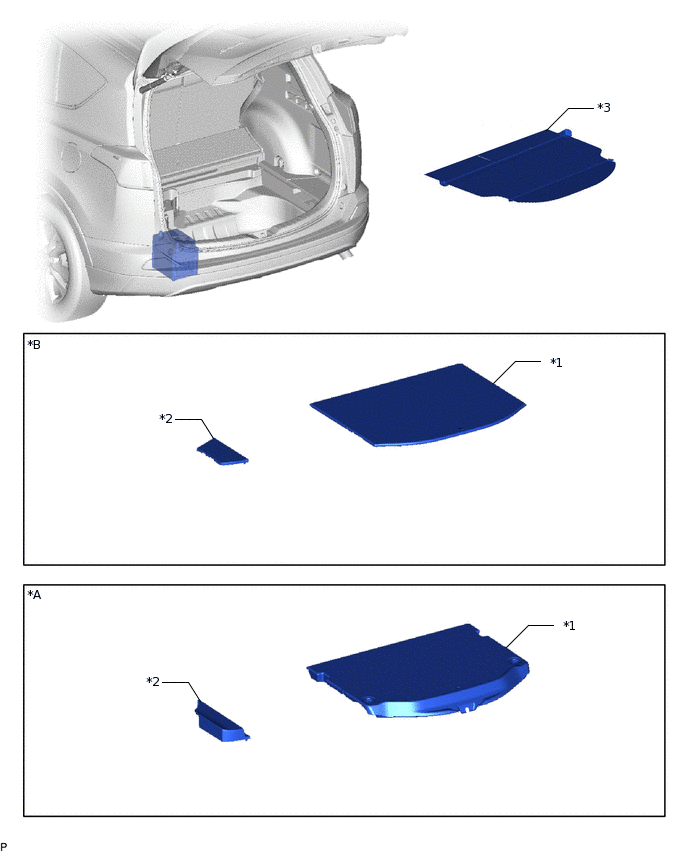

ILLUSTRATION
*A |
w/ Full Size Spare Tire |
*B |
w/o Full Size Spare Tire |
*1 |
DECK BOARD ASSEMBLY |
*2 |
REAR NO.3 FLOOR BOARD |
*3 |
TONNEAU COVER ASSEMBLY |
- |

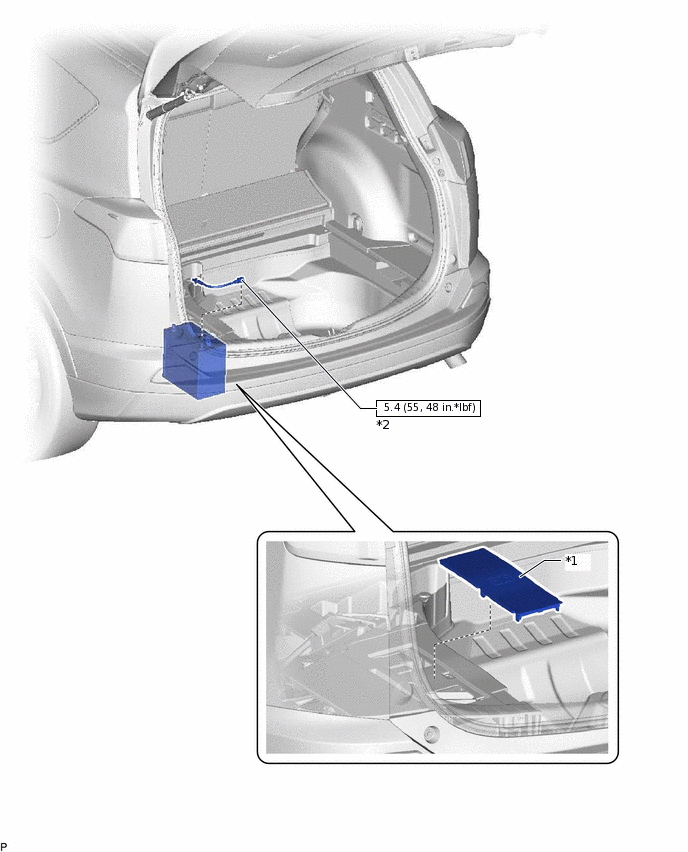

ILLUSTRATION
*1 |
BATTERY SERVICE COVER |
*2 |
NEGATIVE AUXILIARY BATTERY TERMINAL |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

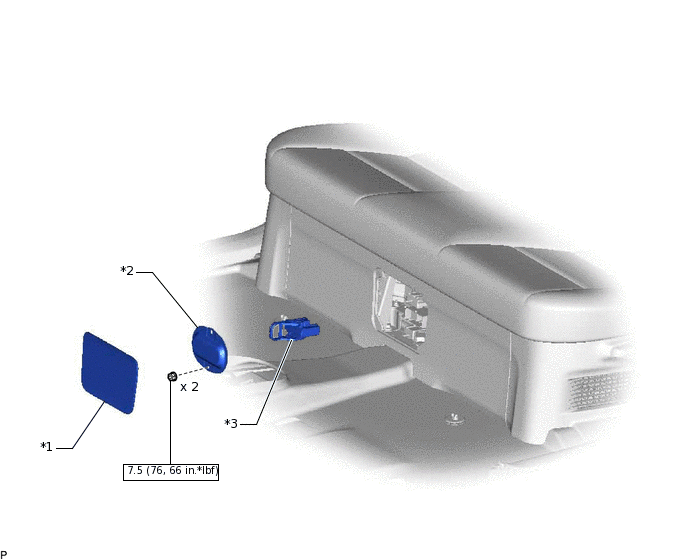

ILLUSTRATION
*1 |
BATTERY SERVICE HOLE COVER |
*2 |
HYBRID BATTERY SERVICE PLUG COVER |
*3 |
SERVICE PLUG GRIP |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

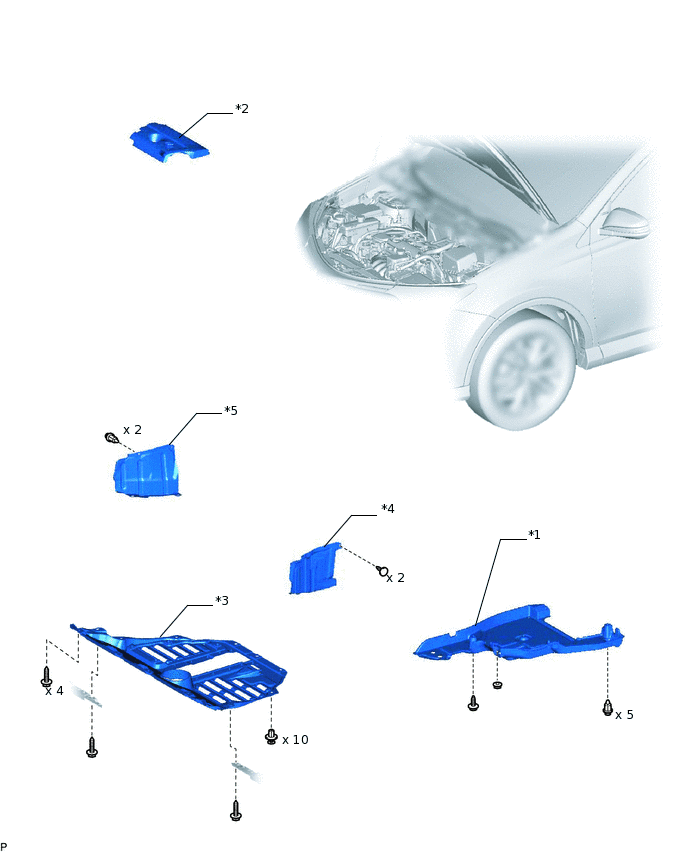

ILLUSTRATION
*1 |
FRONT FLOOR COVER |
*2 |
NO. 1 ENGINE COVER SUB-ASSEMBLY |
*3 |
NO. 1 ENGINE UNDER COVER |
*4 |
REAR ENGINE UNDER COVER LH |
*5 |
REAR ENGINE UNDER COVER RH |
- |
- |

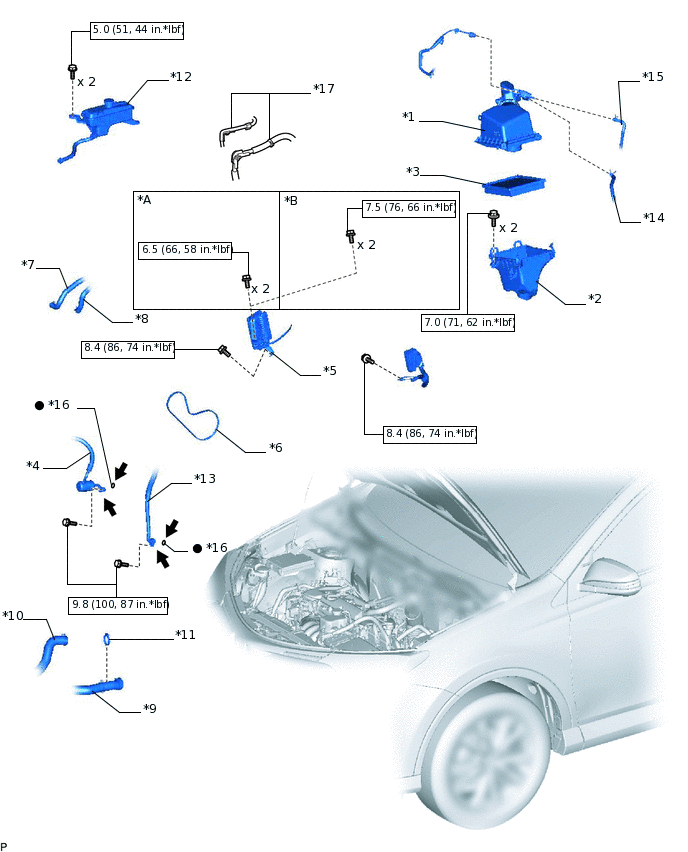

ILLUSTRATION
*A |
Type A |
*B |
Type B |
*1 |
AIR CLEANER CAP SUB-ASSEMBLY |
*2 |
AIR CLEANER CASE SUB-ASSEMBLY |
*3 |
AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY |
*4 |
DISCHARGE HOSE SUB-ASSEMBLY |
*5 |
ECM |
*6 |
FAN AND GENERATOR V BELT |
*7 |
HEATER WATER INLET HOSE |
*8 |
HEATER WATER OUTLET HOSE |
*9 |
NO. 1 RADIATOR HOSE |
*10 |
NO. 2 RADIATOR HOSE |
*11 |
RADIATOR HOSE CLAMP |
*12 |
RADIATOR RESERVOIR ASSEMBLY |
*13 |
SUCTION HOSE SUB-ASSEMBLY |
*14 |
NO. 2 FUEL VAPOR FEED HOSE |
*15 |
FUEL VAPOR FEED HOSE |
*16 |
O-RING |
*17 |
WIRE HARNESS |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
 |
Compressor oil ND-OIL 11 or equivalent |
- |
- |

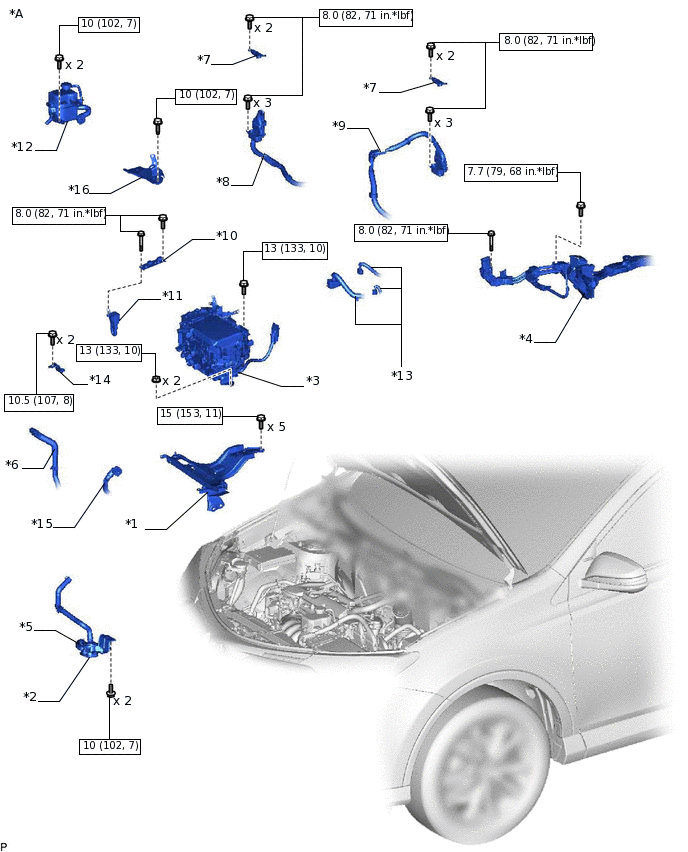

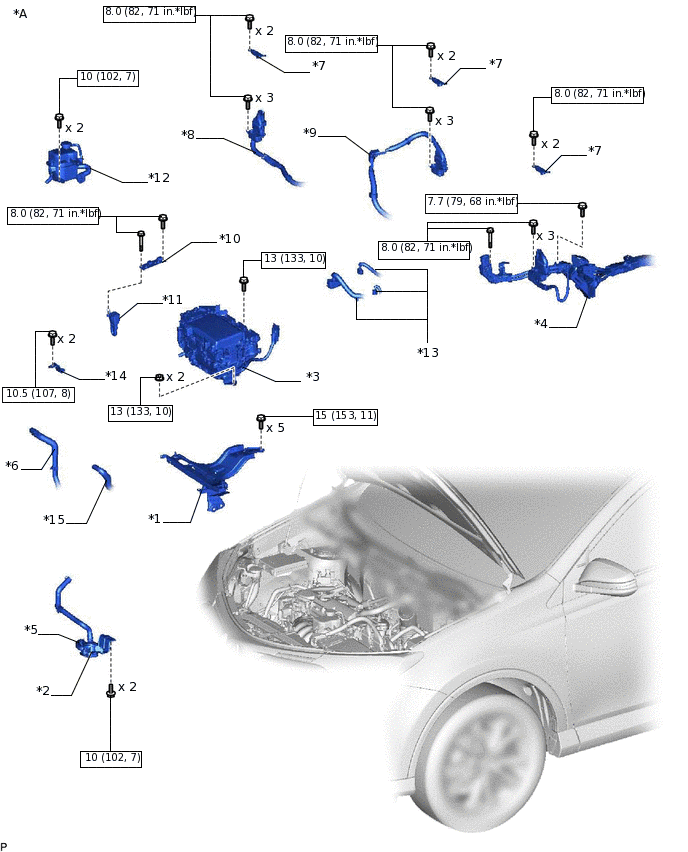

ILLUSTRATION
*A |
for AWD |
- |
- |
*1 |
INVERTER BRACKET ASSEMBLY |
*2 |
INVERTER WATER PUMP WITH MOTOR ASSEMBLY |
*3 |
INVERTER WITH CONVERTER ASSEMBLY |
*4 |
NO. 2 FLOOR WIRE |
*5 |
NO. 3 INVERTER COOLING HOSE |
*6 |
NO. 5 INVERTER COOLING HOSE |
*7 |
INVERTER COVER |
*8 |
MOTOR CABLE |
*9 |
GENERATOR CABLE |
*10 |
CONNECTOR COVER ASSEMBLY |
*11 |
ENGINE WIRE |
*12 |
INVERTER RESERVOIR TANK ASSEMBLY |
*13 |
LOW VOLTAGE CONNECTOR |
*14 |
NO. 6 INVERTER BRACKET |
*15 |
NO. 2 INVERTER COOLING HOSE ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
ILLUSTRATION
*A |
for 2WD |
- |
- |
*1 |
INVERTER BRACKET ASSEMBLY |
*2 |
INVERTER WATER PUMP WITH MOTOR ASSEMBLY |
*3 |
INVERTER WITH CONVERTER ASSEMBLY |
*4 |
NO. 2 FLOOR WIRE |
*5 |
NO. 3 INVERTER COOLING HOSE |
*6 |
NO. 5 INVERTER COOLING HOSE |
*7 |
INVERTER COVER |
*8 |
MOTOR CABLE |
*9 |
GENERATOR CABLE |
*10 |
CONNECTOR COVER ASSEMBLY |
*11 |
ENGINE WIRE |
*12 |
INVERTER RESERVOIR TANK ASSEMBLY |
*13 |
LOW VOLTAGE CONNECTOR |
*14 |
NO. 6 INVERTER BRACKET |
*15 |
NO. 2 INVERTER COOLING HOSE ASSEMBLY |
*16 |
NO. 1 INVERTER RESERVOIR BRACKET |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

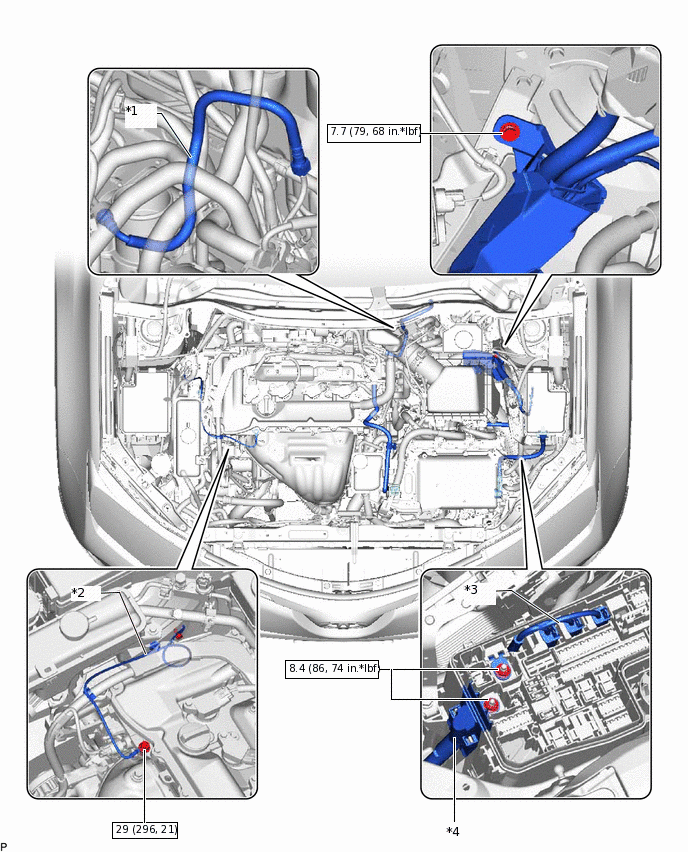

ILLUSTRATION
*1 |
FUEL TUBE SUB-ASSEMBLY |
*2 |
GROUND WIRE |
*3 |
WIRE HARNESS |
*4 |
NO. 3 ENGINE ROOM WIRE |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

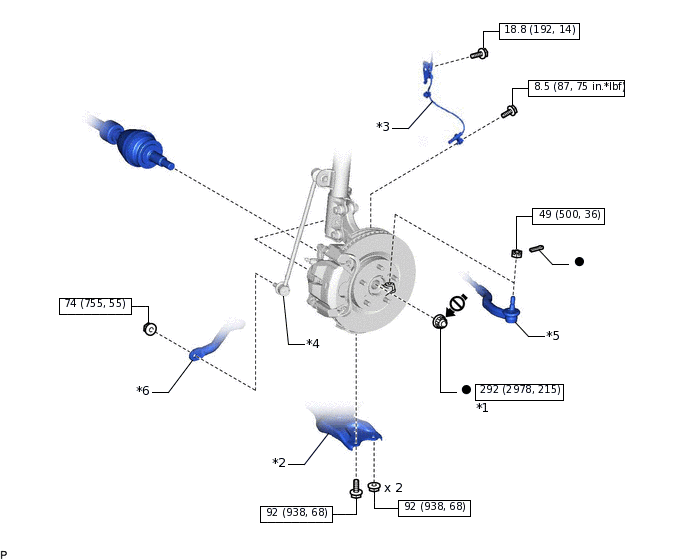

ILLUSTRATION
*1 |
FRONT AXLE SHAFT NUT LH |
*2 |
FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH |
*3 |
FRONT SPEED SENSOR LH |
*4 |
FRONT STABILIZER LINK ASSEMBLY LH |
*5 |
TIE ROD END SUB-ASSEMBLY LH |
*6 |
FRONT STABILIZER BAR |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
 |
Do not apply lubricants to the threads |
- |
- |

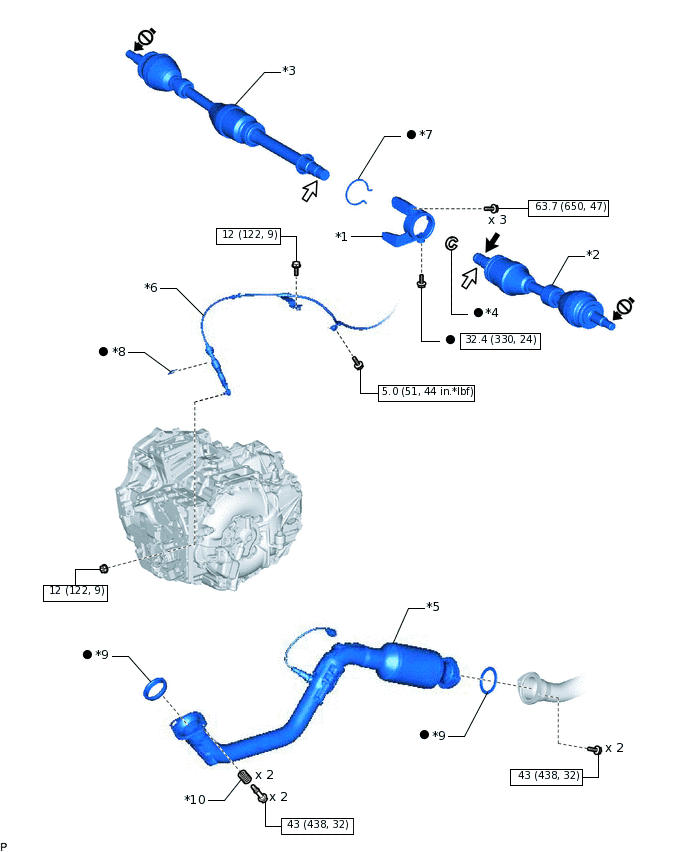

ILLUSTRATION
*1 |
DRIVE SHAFT BEARING BRACKET |
*2 |
FRONT DRIVE SHAFT ASSEMBLY LH |
*3 |
FRONT DRIVE SHAFT ASSEMBLY RH |
*4 |
FRONT DRIVE SHAFT HOLE SNAP RING LH |
*5 |
FRONT EXHAUST PIPE ASSEMBLY |
*6 |
TRANSMISSION CONTROL CABLE ASSEMBLY |
*7 |
DRIVE SHAFT BEARING BRACKET HOLE SNAP RING |
*8 |
CLIP |
*9 |
GASKET |
*10 |
COMPRESSION SPRING |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
|
MP grease |
 |
Toyota Genuine ATF WS |
|
Do not apply lubricants to the threads |
- |
- |

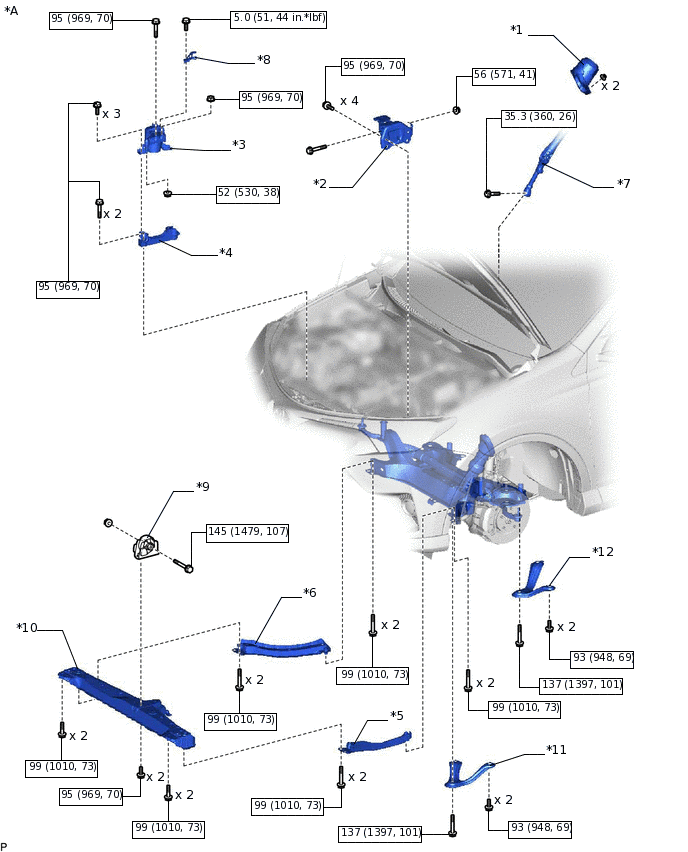

ILLUSTRATION
*A |
for LHD |
- |
- |
*1 |
COLUMN HOLE COVER SILENCER SHEET |
*2 |
ENGINE MOUNTING INSULATOR LH |
*3 |
ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH |
*4 |
ENGINE MOUNTING SPACER |
*5 |
FRONT SUSPENSION MEMBER REINFORCEMENT LH |
*6 |
FRONT SUSPENSION MEMBER REINFORCEMENT RH |
*7 |
NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY |
*8 |
RADIATOR RESERVOIR TANK BRACKET |
*9 |
FRONT ENGINE MOUNTING INSULATOR |
*10 |
FRONT CROSSMEMBER SUB-ASSEMBLY |
*11 |
FRONT SUSPENSION MEMBER REAR BRACE RH |
*12 |
FRONT SUSPENSION MEMBER REAR BRACE LH |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

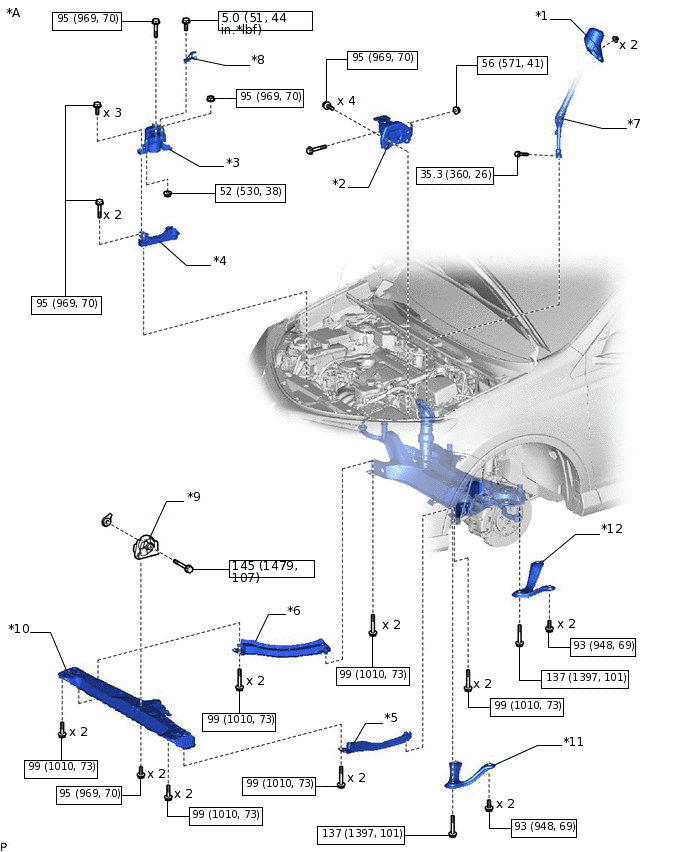

ILLUSTRATION
*A |
for RHD |
- |
- |
*1 |
COLUMN HOLE COVER SILENCER SHEET |
*2 |
ENGINE MOUNTING INSULATOR LH |
*3 |
ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH |
*4 |
ENGINE MOUNTING SPACER |
*5 |
FRONT SUSPENSION MEMBER REINFORCEMENT LH |
*6 |
FRONT SUSPENSION MEMBER REINFORCEMENT RH |
*7 |
NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY |
*8 |
RADIATOR RESERVOIR TANK BRACKET |
*9 |
FRONT ENGINE MOUNTING INSULATOR |
*10 |
FRONT CROSSMEMBER SUB-ASSEMBLY |
*11 |
FRONT SUSPENSION MEMBER REAR BRACE RH |
*12 |
FRONT SUSPENSION MEMBER REAR BRACE LH |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

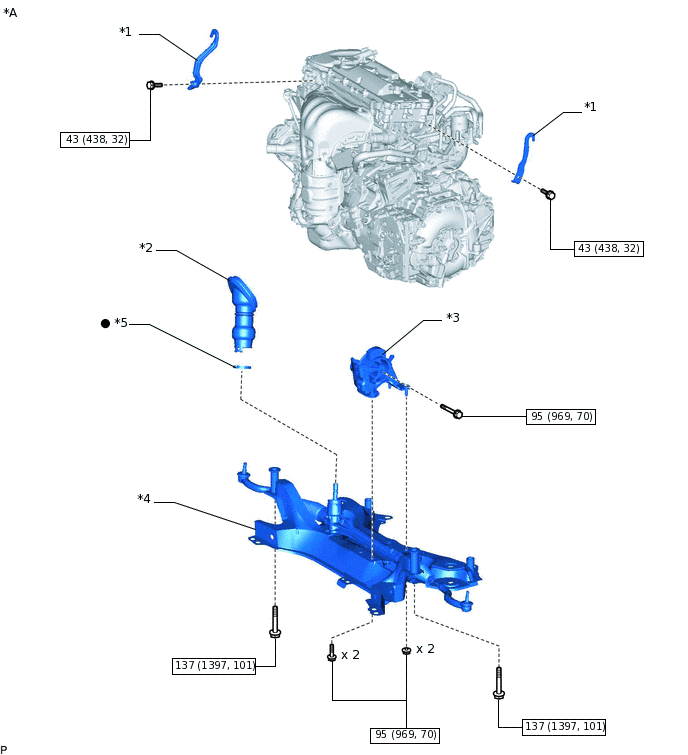

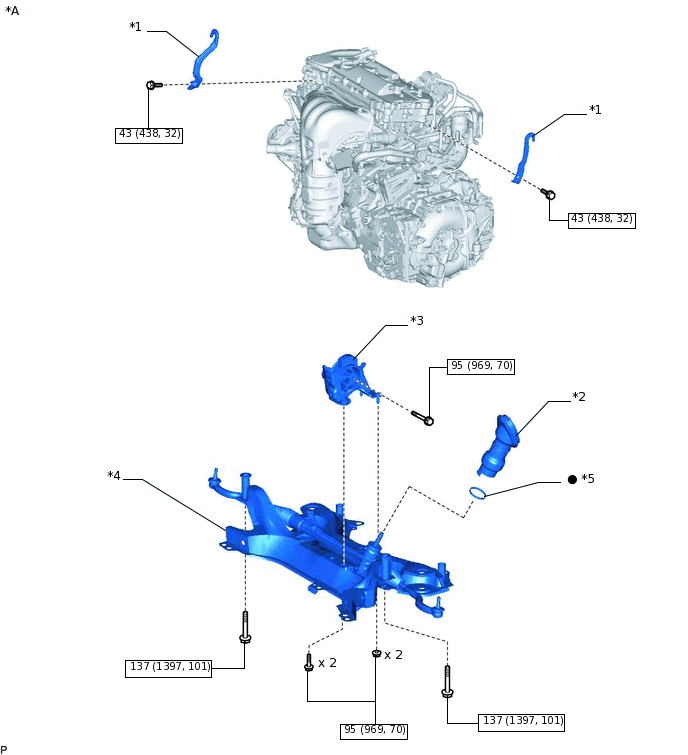

ILLUSTRATION
*A |
for LHD |
- |
- |
*1 |
ENGINE HANGER |
*2 |
NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY |
*3 |
REAR ENGINE MOUNTING INSULATOR |
*4 |
FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY |
*5 |
CLAMP |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
ILLUSTRATION
*A |
for RHD |
- |
- |
*1 |
ENGINE HANGER |
*2 |
NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY |
*3 |
REAR ENGINE MOUNTING INSULATOR |
*4 |
FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY |
*5 |
CLAMP |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |

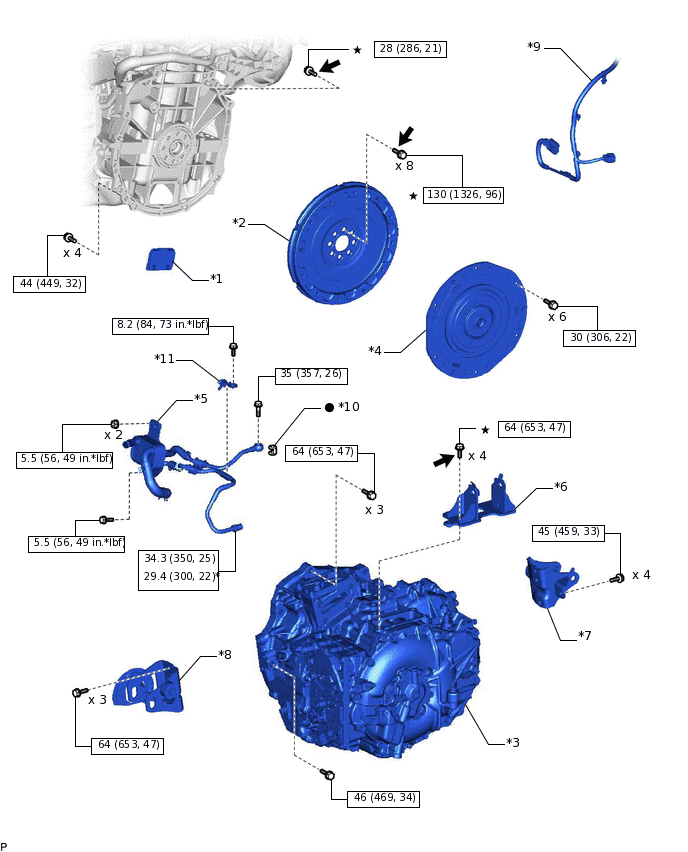

ILLUSTRATION
*1 |
FLYWHEEL HOUSING UNDER COVER |
*2 |
FLYWHEEL SUB-ASSEMBLY |
*3 |
HYBRID VEHICLE TRANSAXLE ASSEMBLY |
*4 |
TRANSMISSION INPUT DAMPER ASSEMBLY |
*5 |
TRANSMISSION OIL COOLER ASSEMBLY |
*6 |
ENGINE MOUNTING BRACKET LH |
*7 |
REAR ENGINE MOUNTING BRACKET |
*8 |
FRONT ENGINE MOUNTING BRACKET |
*9 |
WIRE HARNESS |
*10 |
GASKET |
*11 |
NO. 1 OIL COOLER TUBE CLAMP |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
* |
For use with union nut wrench |
● |
Non-reusable part |
|
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent |
★ |
Precoated part |
- |
- |
