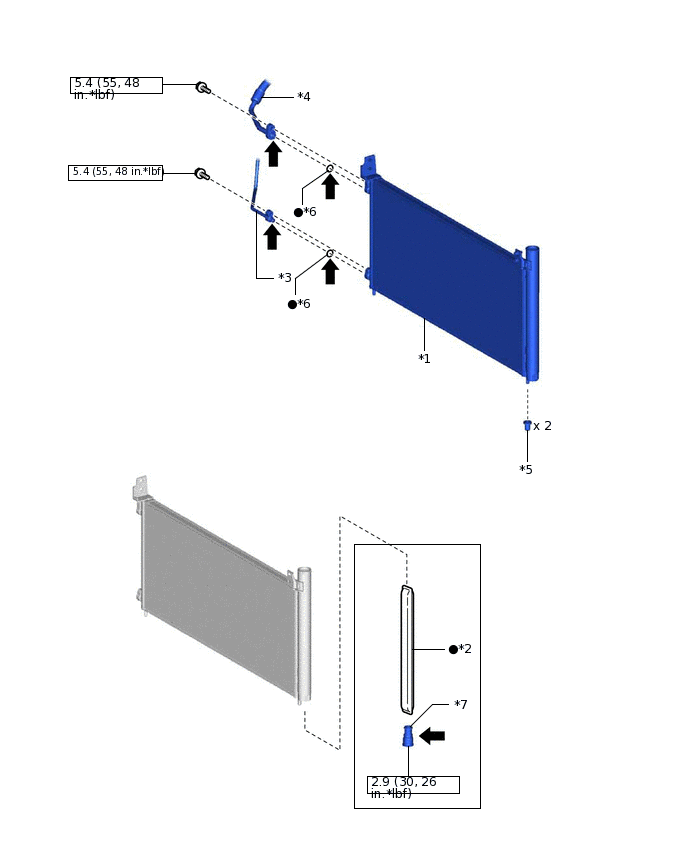

CONDENSER COMPONENTS

ILLUSTRATION

I110186C05

*1

COOLER CONDENSER ASSEMBLY

*2

COOLER DRYER

*3

DISCHARGE HOSE SUB-ASSEMBLY

*4

LIQUID PIPE SUB-ASSEMBLY

*5

NO. 1 COOLER CONDENSER CUSHION

*6

O-RING

*7

CAP

-

-
V100146

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
V100135

Compressor oil ND-OIL 11 or equivalent

-

-
