WIPER SWITCH REMOVAL

PROCEDURE

1. REMOVE STEERING WHEEL ASSEMBLY

   Click here

2. REMOVE LOWER STEERING COLUMN COVER

   Click here

3. REMOVE UPPER NO. 2 STEERING COLUMN COVER

   Click here

4. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

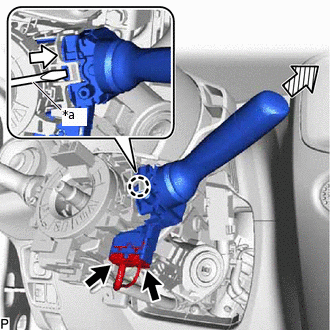

   1.

      *a	Screwdriver

      Disconnect each connector.

   2. Using a screwdriver, disengage the claw and remove the windshield wiper switch assembly as shown in the illustration.

      Note:

      If the claw is pushed with excessive force, it may break.
