REAR DOOR LOCK REMOVAL

CAUTION / NOTICE / HINT

PROCEDURE

1. REMOVE DECK BOARD ASSEMBLY

   Click here

2. REMOVE BATTERY SERVICE COVER

   Click here

3. PRECAUTION

   Note:

   After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery terminal notice before proceeding with work.

   Click hereClick hereClick hereClick here

4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

   Note:

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

   Click hereClick hereClick here

5. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

   Click here

6. REMOVE DOOR ASSIST GRIP COVER LH

   Click here

7. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG LH

   Click here

8. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH

   Click here

9. REMOVE REAR DOOR SERVICE HOLE COVER LH

   Click here

10. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY LH

    Click here

11. REMOVE REAR DOOR QUARTER WINDOW GLASS LH

    Click here

12. REMOVE REAR DOOR GLASS SUB-ASSEMBLY LH

    Click here

13. REMOVE REAR DOOR GLASS RUN LH

    Click here

14. REMOVE REAR DOOR WITH MOTOR LOCK ASSEMBLY LH

    1.

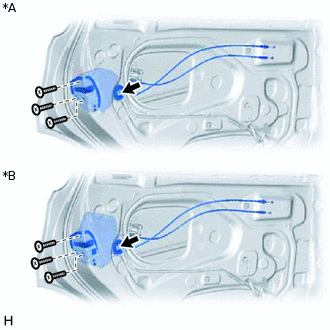

       *A	w/o Double Locking System
       *B	w/ Double Locking System

       Disconnect the connector.

    2. Using a T30 "TORX" socket wrench, remove the 3 screws.

    3.

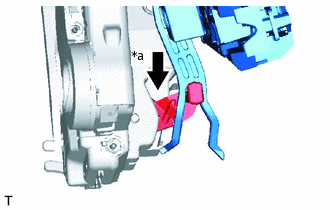

       *a

       Downward

       Move the rear door with motor lock assembly LH downward and pull the release plate out of the rear door outside handle frame.

    4. Remove the rear door with motor lock assembly LH and cables as a unit.

    5.

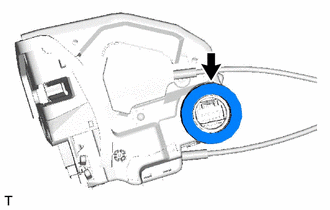

       Remove the door lock wiring harness seal from the rear door with motor lock assembly LH.

15. REMOVE REAR DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY LH

    Click here

16. REMOVE REAR DOOR INSIDE LOCKING CABLE ASSEMBLY LH

    Click here
