BACK DOOR OUTSIDE GARNISH(for Upper Side) DISASSEMBLY

PROCEDURE

  1. REMOVE SYMBOL EMBLEM

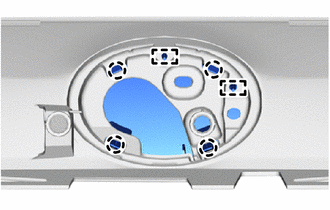

    1. B437118

      Detach the 4 claws and 2 guides and remove the symbol emblem.

  2. REMOVE BACK DOOR OUTSIDE GARNISH PROTECTOR

    1. B426443

      Remove the 4 back door outside garnish protectors.
