ENGINE STOP AND START ECU INSTALLATION

PROCEDURE

  1. INSTALL ENGINE STOP AND START ECU (for RHD)

    1. Install the engine stop and start ECU with the 2 bolts.

      13 N*m

      127 kgf*cm

      9 ft.*lbf

    2. Connect the 3 connectors to the engine stop and start ECU.

    3. Connect the connector holder with the screw.

  2. INSTALL ENGINE STOP AND START ECU (for LHD)

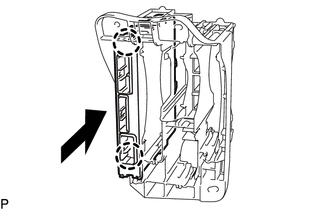

    1. A316920

      Engage the 2 claws to install the engine stop and start ECU to the ECU integration box RH.

  3. INSTALL ECU INTEGRATION BOX RH (for LHD)

    1. Install the ECU integration box RH with the 2 nuts and bolt.

      Tip:

      Refer to "SPECIFICATIONS - STANDARD BOLT" for the tightening torque.

    2. Connect the 8 connectors and clamp.

  4. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY

    Click here

  5. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Click here

  6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).

  7. PERFORM REGISTRATION

    (Click here)
