MAIN BODY ECU(for LHD) COMPONENTS

*A	w/o Spare Tire, for Compact Spare Tire	*B	for Full Size Spare Tire
*1	BATTERY SERVICE COVER	*2	DECK BOARD ASSEMBLY
*3	AUXILIARY BATTERY NEGATIVE TERMINAL	-	-
	Nm (kgfcm, ft.*lbf) : Specified torque	-	-

*A

w/o Spare Tire, for Compact Spare Tire

*B

for Full Size Spare Tire

*1

BATTERY SERVICE COVER

*2

DECK BOARD ASSEMBLY

*3

AUXILIARY BATTERY NEGATIVE TERMINAL

-

N*m (kgf*cm, ft.*lbf) : Specified torque

-

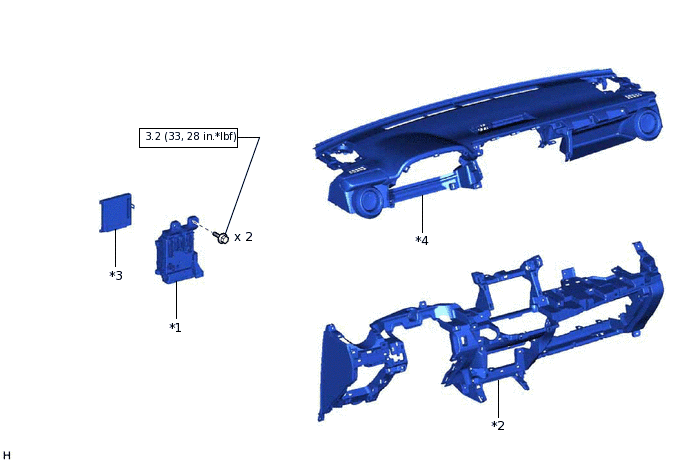

*1	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY	*2	LOWER INSTRUMENT PANEL
*3	MULTIPLEX NETWORK BODY ECU (MAIN BODY ECU)	*4	UPPER INSTRUMENT PANEL SUB-ASSEMBLY
	Nm (kgfcm, ft.*lbf) : Specified torque	-	-
