SEAT ASSEMBLY


  1. FUNCTION


    1. Whiplash Injury Reducing Structure


      1. A structure, which provides support for the whole area from the head to the waist at the same time during a collision, is used to help reduce whiplash injury.

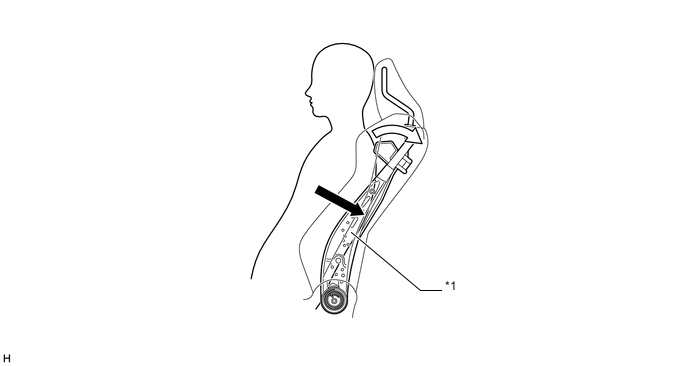

        A004GXBE02
        Text in Illustration
        *1 Seat Back Side Frame - -
        A004GVA Impact Direction (Downward Force Acting from Center of Back to Waist) A004GZF Impact Direction (Downward Force Acting on Upper Back)

      2. The side frame shape of the front seat assembly has been made highly rigid. As a result, the front seat assembly can support passengers to prevent them from falling backward in a collision.

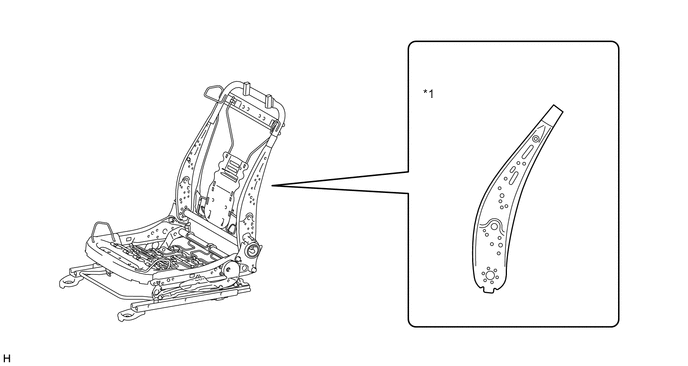

        A004GVHE01
        Text in Illustration
        *1 Seat Back Side Frame - -

    2. Manual Lifter


      1. The driver seat uses a manual lifter. The entire seat can be vertically moved by operating the vertical adjusting handle on the outer surface of the driver seat cushion.

      2. The manual lifter consists of the vertical adjusting handle, lifter gear and lifter rod, thus accommodating various body types.

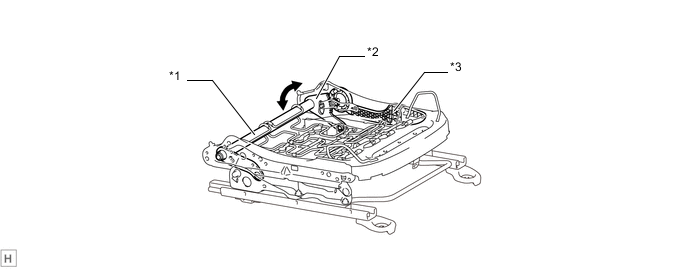

        A004GMRE02
        Text in Illustration
        *1 Lifter Rod *2 Lifter Gear
        *3 Vertical Adjusting Handle - -

    3. Walk-in Mechanism


      1. A walk-in mechanism that tilts and slides the front passenger seat forward for rear seat passengers to help them easily get in and out the vehicle.

      2. The seat back can be made to tilt and slide forward by pulling the strap located under the seat, improving ease of operation.

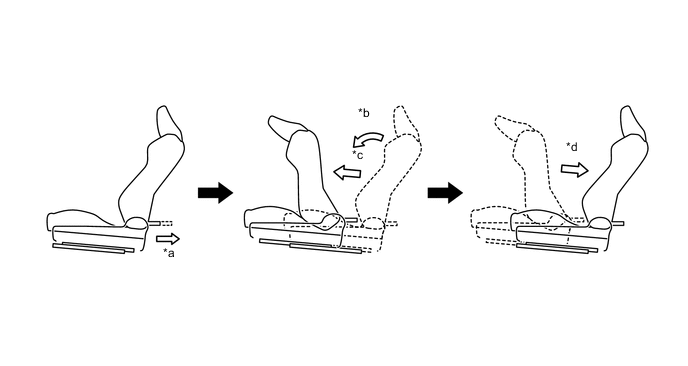

        A004GM4E02
        Step Operation
        *a Pull the strap.
        *b The seat back tilts forward.
        *c The seat slides forward to provide a walk-in space.
        *d Slide the seat rearward and return the seat back rearward.

  2. CONSTRUCTION


    1. Front Seat


      1. Manually adjustable front seats have been provided.

      2. A front seat back with a slimline design is used to ensure space around the knees of the passengers in the rear seat.

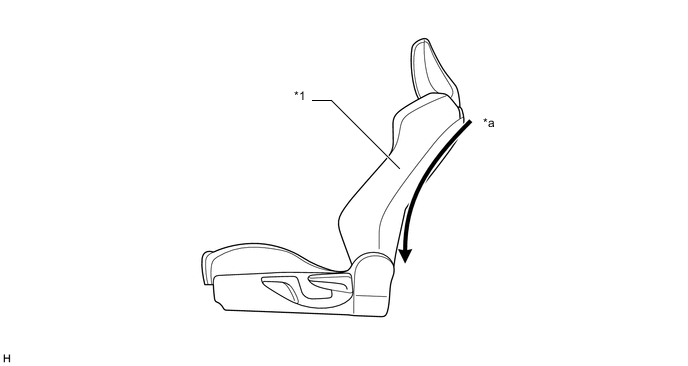

        A004GUKE02
        Text in Illustration
        *1 Front Seat Back - -
        *a Seat Back Shape with Slimline Design - -

    2. Rear Seat


      1. A folding function is employed in the seat back (bench type rear seat back assembly) for the united type rear seat to improve the usability and convenience.

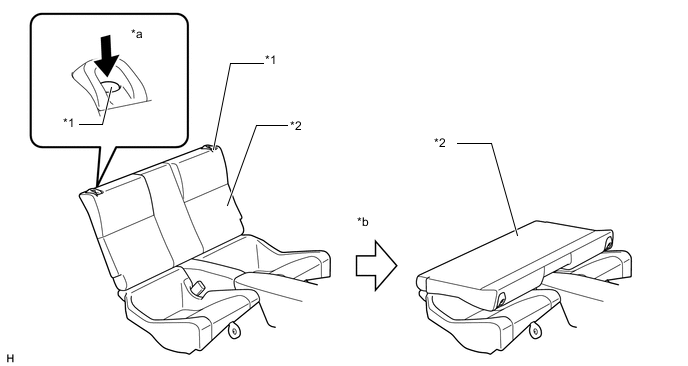

        A004GIOE02
        Text in Illustration (Except Models for Korea:)
        *1 Seat Back Lock Release Button *2 Seat Back (Bench Type Rear Seat Back Assembly)
        *a Push the seat back release button. *b Folding the seat back (bench type rear seat back assembly).

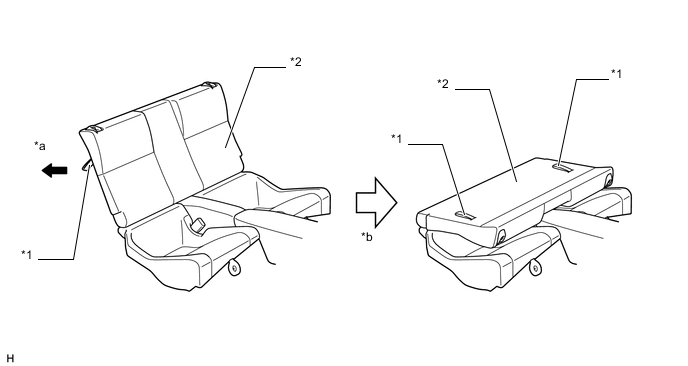

        A004GOEE03
        Text in Illustration (Models for Korea:)
        *1 Strap *2 Seat Back (Bench Type Rear Seat Back Assembly)
        *a Pull the strap. *b Folding the seat back (bench type rear seat back assembly).

    3. Child Restraint System (CRS)


      1. ISO-FIX bars (child restraint seat anchor bracket sub-assemblies/rear seat hinge sub-assemblies) for securing child seats have been provided behind the seat cushion of the rear seat.

      2. CRS top tether anchor brackets (child restraint seat anchor brackets) for securing a child seat have been provided on the package tray trim panel assembly.

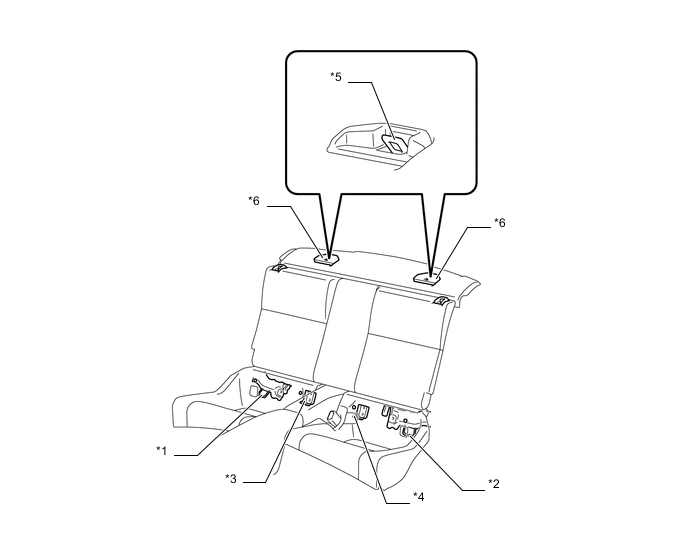

        A004GVGE02
        Text in Illustration
        *1 ISO-FIX Bar (Rear Seat Hinge Sub-assembly RH) *2 ISO-FIX Bar (Rear Seat Hinge Sub-assembly LH)
        *3 ISO-FIX Bar (Child Restraint Seat Anchor Bracket Sub-assembly RH) *4 ISO-FIX Bar (Child Restraint Seat Anchor Bracket Sub-assembly LH)
        *5 CRS Top Tether Anchor Bracket (Child Restraint Seat Tether Anchor Bracket) *6 Cover (No.1 Child Restraint Seat Cover)
