BACK DOOR OUTSIDE GARNISH(for Lower Side) INSTALLATION

PROCEDURE

  1. INSTALL NO. 3 BACK DOOR GARNISH RETAINER

    1. Attach the claw to install a new No. 3 back door garnish retainer.

    2. Install the screw.

  2. INSTALL NO. 2 BACK DOOR GARNISH RETAINER

    1. Attach the claw to install the No. 2 back door garnish retainer.

    2. Install the screw.

  3. INSTALL NO. 1 BACK DOOR GARNISH RETAINER

    Tip:

    Use the same procedure described for the No. 2 back door garnish retainer.

  4. INSTALL LOWER BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

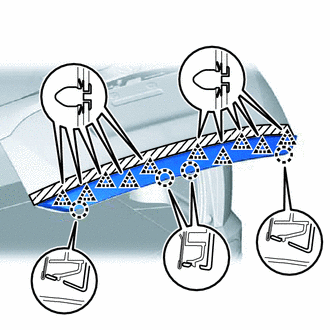

    1. B426437

      Attach the 10 clips and 4 claws to install the lower back door outside garnish sub-assembly.
