METER / GAUGE SYSTEM PARTS LOCATION

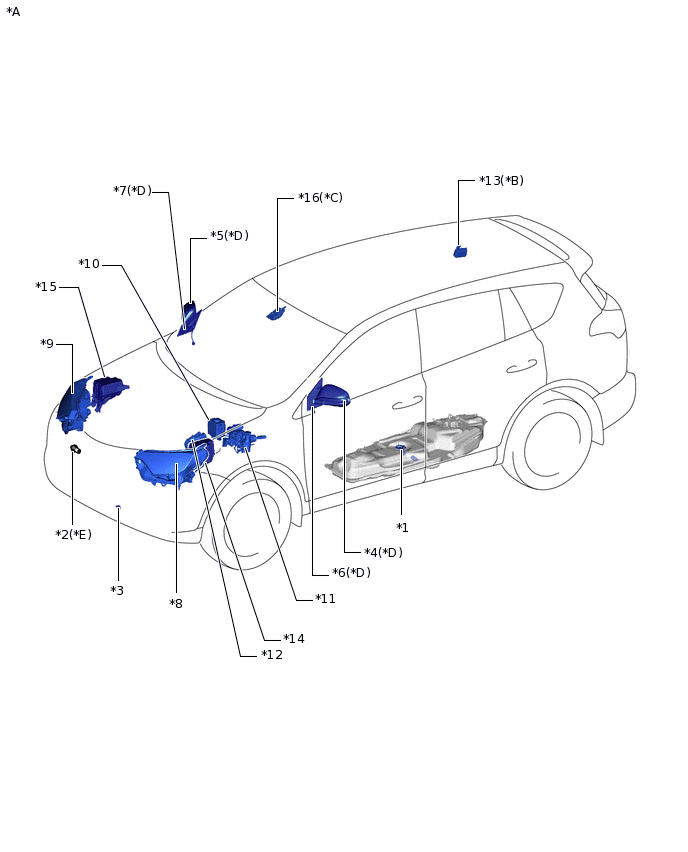

ILLUSTRATION
*A |
for LHD |
*B |
w/ Tire Pressure Warning System |
*C |
w/ Front Recognition Camera System |
*D |
w/ Side Turn Signal Light |
*E |
w/ Washer Level Warning System |
*F |
w/o Panic Switch |
*1 |
FUEL SENDER GAUGE ASSEMBLY |
*2 |
LEVEL WARNING SWITCH ASSEMBLY |
*3 |
COOLER THERMISTOR (AMBIENT TEMPERATURE SENSOR) |
*4 |
SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
*5 |
SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
*6 |
OUTER REAR VIEW MIRROR ASSEMBLY LH - OUTER REAR VIEW MIRROR SUB-ASSEMBLY LH |
*7 |
OUTER REAR VIEW MIRROR ASSEMBLY RH - OUTER REAR VIEW MIRROR SUB-ASSEMBLY RH |
*8 |
FRONT TURN SIGNAL LIGHT LH |
*9 |
FRONT TURN SIGNAL LIGHT RH |
*10 |
BRAKE MASTER CYLINDER RESERVOIR SUB-ASSEMBLY - BRAKE FLUID LEVEL WARNING SWITCH |
*11 |
BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY - SKID CONTROL ECU |
*12 |
ECM |
*13 |
TIRE PRESSURE WARNING ECU AND RECEIVER |
*14 |
NO. 1 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - DIMMER RELAY (*F) - TURN&HAZ FUSE - ECU-B NO.2 FUSE |
*15 |
NO. 2 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY |
*16 |
FORWARD RECOGNITION CAMERA |

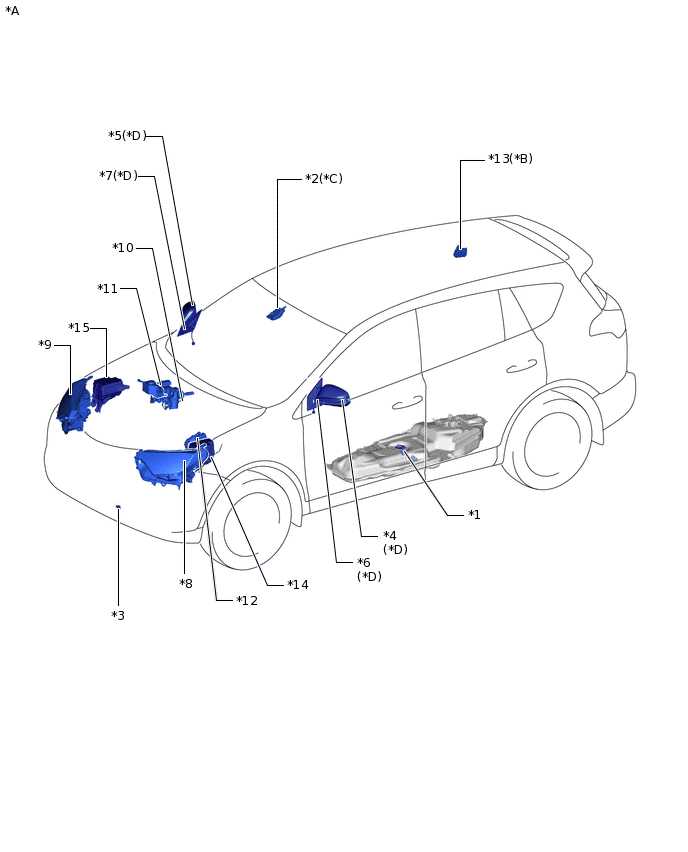

ILLUSTRATION
*A |
for RHD |
*B |
w/ Tire Pressure Warning System |
*C |
w/ Front Recognition Camera System |
*D |
w/ Side Turn Signal Light |
*E |
w/o Panic Switch |
- |
- |
*1 |
FUEL SENDER GAUGE ASSEMBLY |
*2 |
FORWARD RECOGNITION CAMERA |
*3 |
COOLER THERMISTOR (AMBIENT TEMPERATURE SENSOR) |
*4 |
SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
*5 |
SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
*6 |
OUTER REAR VIEW MIRROR ASSEMBLY LH - OUTER REAR VIEW MIRROR SUB-ASSEMBLY LH |
*7 |
OUTER REAR VIEW MIRROR ASSEMBLY RH - OUTER REAR VIEW MIRROR SUB-ASSEMBLY RH |
*8 |
FRONT TURN SIGNAL LIGHT LH |
*9 |
FRONT TURN SIGNAL LIGHT RH |
*10 |
BRAKE MASTER CYLINDER RESERVOIR SUB-ASSEMBLY - BRAKE FLUID LEVEL WARNING SWITCH |
*11 |
BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY - SKID CONTROL ECU |
*12 |
ECM |
*13 |
TIRE PRESSURE WARNING ECU AND RECEIVER |
*14 |
NO. 1 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - DIMMER RELAY (*E) - TURN&HAZ FUSE - ECU-B NO.2 FUSE |
*15 |
NO. 2 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY |
- |
- |

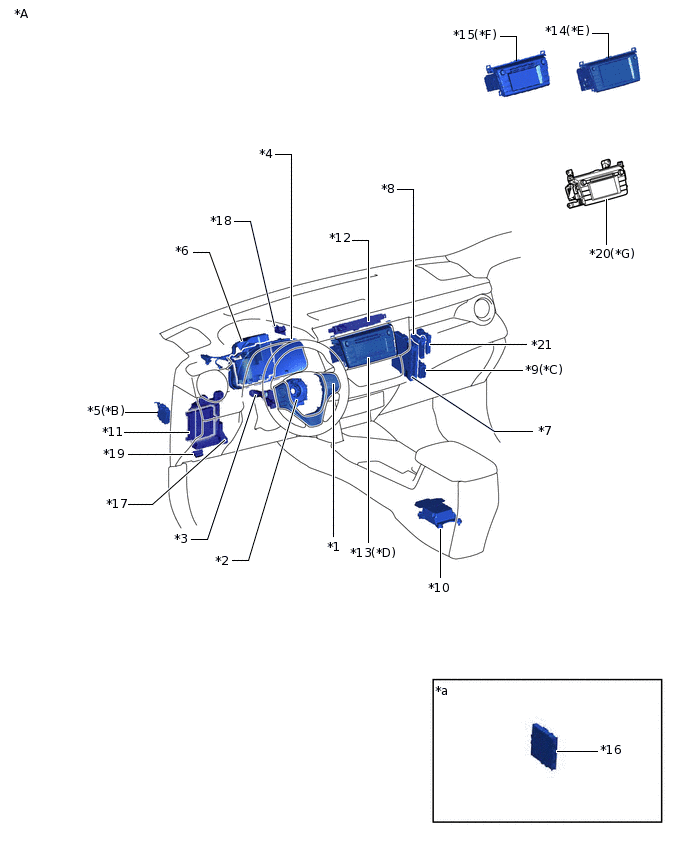

ILLUSTRATION
*A |
for LHD |
*B |
w/ Automatic Headlight Beam Level Control System |
*C |
w/ Rain Sensor |
*D |
for Radio Receiver Type |
*E |
for Navigation Receiver Type (for HDD) |
*F |
for Radio and Display Type |
*G |
for Navigation Receiver Type (for SD) |
- |
- |
*1 |
STEERING PAD SWITCH ASSEMBLY |
*2 |
SPIRAL CABLE SUB-ASSEMBLY |
*3 |
HEADLIGHT DIMMER SWITCH ASSEMBLY |
*4 |
COMBINATION METER ASSEMBLY |
*5 |
HEADLIGHT LEVELING ECU ASSEMBLY |
*6 |
POWER STEERING ECU ASSEMBLY |
*7 |
HYBRID VEHICLE CONTROL ECU |
*8 |
CLEARANCE WARNING ECU ASSEMBLY |
*9 |
WINDSHIELD WIPER RELAY ASSEMBLY |
*10 |
AIRBAG SENSOR ASSEMBLY |
*11 |
MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
*12 |
TELLTALE LIGHT ASSEMBLY - HAZARD WARNING SIGNAL SWITCH |
*13 |
RADIO RECEIVER ASSEMBLY |
*14 |
NAVIGATION ECU SUB-ASSEMBLY |
*15 |
RADIO AND DISPLAY RECEIVER ASSEMBLY |
*16 |
CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
*17 |
INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - METER FUSE |
*18 |
NO. 4 RELAY BLOCK |
*19 |
DLC3 |
*20 |
NAVIGATION RECEIVER ASSEMBLY |
*21 |
DRIVING SUPPORT ECU ASSEMBLY |
- |
- |
*a |
Refer to the Service Bulletin for the installation position of the parts. |
- |
- |

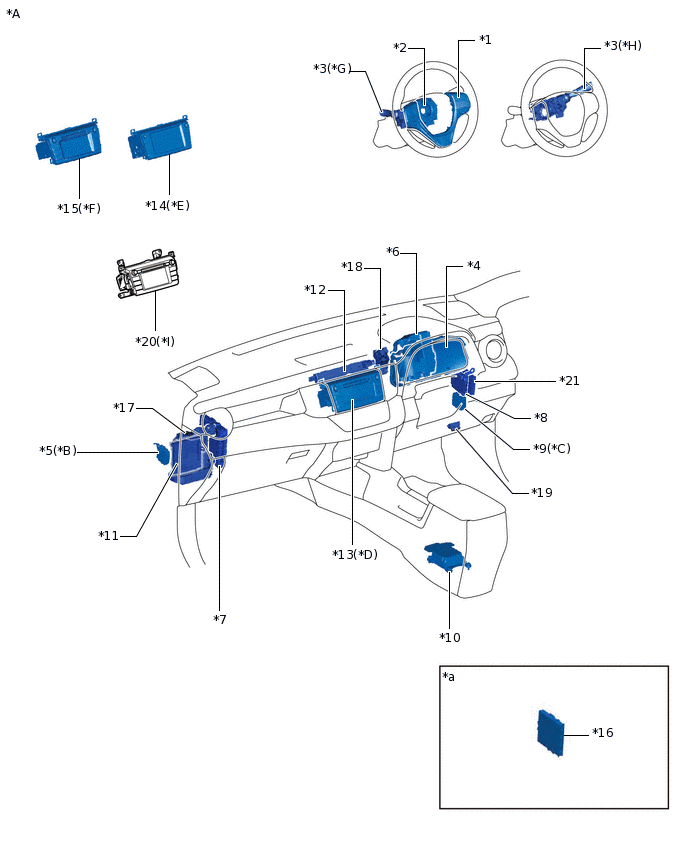

ILLUSTRATION
*A |
for RHD |
*B |
w/ Automatic Headlight Beam Level Control System |
*C |
w/ Rain Sensor |
*D |
for Radio Receiver Type |
*E |
for Navigation Receiver Type (for HDD) |
*F |
for Radio and Display Type |
*G |
for LH Side |
*H |
for RH Side |
*I |
for Navigation Receiver Type (for SD) |
- |
- |
*1 |
STEERING PAD SWITCH ASSEMBLY |
*2 |
SPIRAL CABLE SUB-ASSEMBLY |
*3 |
HEADLIGHT DIMMER SWITCH ASSEMBLY |
*4 |
COMBINATION METER ASSEMBLY |
*5 |
HEADLIGHT LEVELING ECU ASSEMBLY |
*6 |
POWER STEERING ECU ASSEMBLY |
*7 |
HYBRID VEHICLE CONTROL ECU |
*8 |
CLEARANCE WARNING ECU ASSEMBLY |
*9 |
WINDSHIELD WIPER RELAY ASSEMBLY |
*10 |
AIRBAG SENSOR ASSEMBLY |
*11 |
MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
*12 |
TELLTALE LIGHT ASSEMBLY - HAZARD WARNING SIGNAL SWITCH |
*13 |
RADIO RECEIVER ASSEMBLY |
*14 |
NAVIGATION ECU SUB-ASSEMBLY |
*15 |
RADIO AND DISPLAY RECEIVER ASSEMBLY |
*16 |
CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
*17 |
INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - METER FUSE |
*18 |
NO. 4 RELAY BLOCK |
*19 |
DLC3 |
*20 |
NAVIGATION RECEIVER ASSEMBLY |
*21 |
DRIVING SUPPORT ECU ASSEMBLY |
- |
- |
*a |
Refer to the Service Bulletin for the installation position of the parts. |
- |
- |

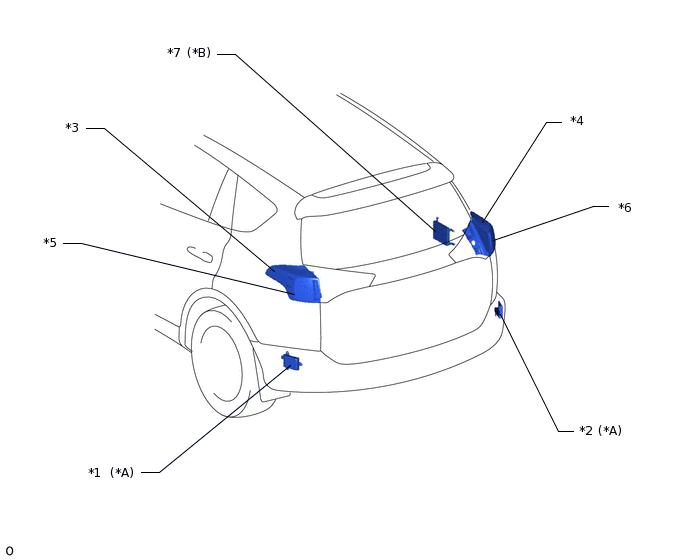

ILLUSTRATION
*A |
w/ Blind Spot Monitor System |
*B |
for 11 Speakers |
*1 |
BLIND SPOT MONITOR SENSOR LH |
*2 |
BLIND SPOT MONITOR SENSOR RH |
*3 |
REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH |
*4 |
REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY RH |
*5 |
REAR TURN SIGNAL LIGHT LH |
*6 |
REAR TURN SIGNAL LIGHT RH |
*7 |
STEREO COMPONENT AMPLIFIER ASSEMBLY |
- |
- |

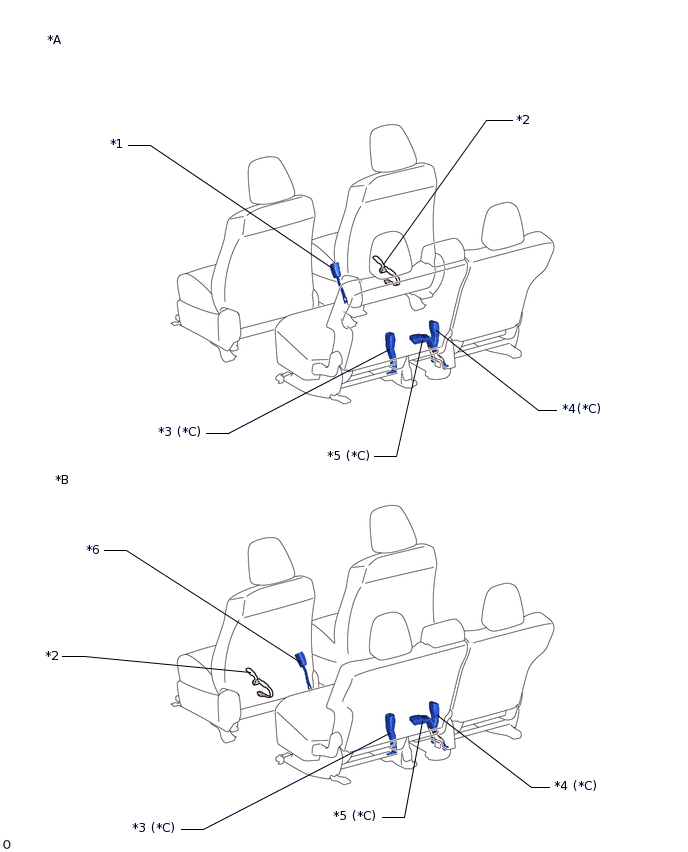

ILLUSTRATION
*A |
for LHD |
*B |
for RHD |
*C |
w/ Rear Seat Belt Warning System |
- |
- |
*1 |
FRONT SEAT INNER BELT ASSEMBLY RH |
*2 |
SEPARATE TYPE FRONT SEAT CUSHION PAD (OCCUPANT DETECTION SENSOR) |
*3 |
REAR SEAT INNER BELT ASSEMBLY LH |
*4 |
REAR SEAT INNER BELT ASSEMBLY RH |
*5 |
REAR CENTER LAP TYPE SEAT INNER BELT ASSEMBLY RH |
*6 |
FRONT SEAT INNER BELT ASSEMBLY LH |

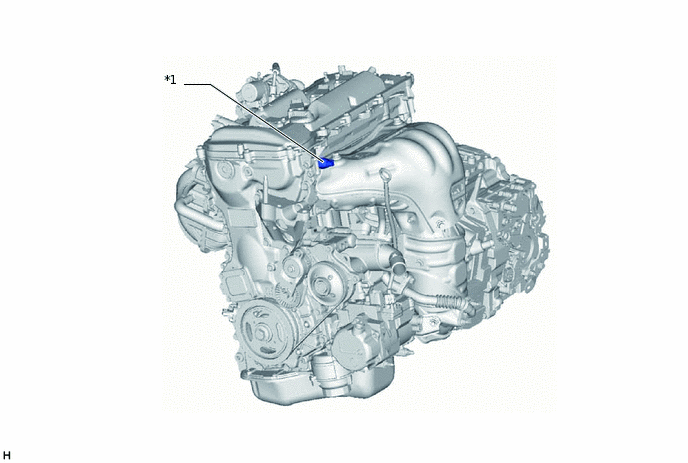

ILLUSTRATION
*1 |
OIL PRESSURE SWITCH |
- |
- |
