TIRE PRESSURE WARNING SYSTEM TEST MODE PROCEDURE

  1. Tip:

    • When entering test mode (signal check mode), the tire pressure warning ECU and receiver sets all the test mode (signal check mode) DTCs first. After the tire pressure warning ECU and receiver completes the signal check for each inspection item, the DTCs for systems that are determined to be normal will be cleared.

    • When test mode (signal check mode) returns to normal mode, all the test mode (signal check mode) DTCs will be cleared.

    • Operation of the tire pressure warning reset switch can be checked in test mode (signal check mode).

    • During test mode (signal check mode), the system is not initialized by pushing the tire pressure warning reset switch. The circuit of the tire pressure warning reset switch can be inspected during this mode.

    TEST MODE (SIGNAL CHECK MODE) PROCEDURE

    1. Turn the power switch off.

    2. Connect the GTS to the DLC3.

    3. Turn the power switch on (IG) and the GTS on.

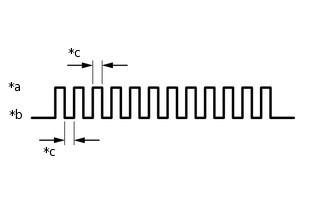

    4. C275244C02

      *a

      ON

      *b

      OFF

      *c

      0.125 sec.

      Enter the following menus: Chassis / Tire Pressure Monitor / Utility / Signal Check.

      Chassis > Tire Pressure Monitor > Utility

      Tester Display

      Signal Check
      Tip:

      Every time the test mode (signal check mode) DTC clear conditions are satisfied, the tire pressure warning light illuminated for 1 second. Following this, the tire pressure warning light blinks at 0.125 second intervals.

    5. Press the tire pressure warning reset switch (C2198/98).

    6. Wait for 1.5 minutes with the vehicle stopped, or drive the vehicle at a speed of 50 km/h (31 mph) or more for 1 minute (C2181/81 to C2184/84 (C2185/85: w/ Full Size Spare Tire)).

      Tip:

      The tire pressure warning valve and transmitters send signals to the tire pressure warning ECU and receiver once every 1.5 minutes while the vehicle is stopped and once every minute while driving.

    7. Check that the tire pressure warning system test mode (signal check mode) DTCs are cleared.

      Test Mode (Signal Check Mode) DTC

      Test Signal

      Test Mode (Signal Check Mode) DTC Clear Condition

      C2181/81 to C2184/84

      (C2185/85*)

      Transmitter Data

      Data is received from the relevant transmitter which has a registered ID in the tire pressure warning ECU and receiver.

      C2198/98

      Tire Pressure Warning Reset Switch Signal

      A signal is received indicating that the tire pressure warning reset switch is pressed.

      • *: w/ Full Size Spare Tire

    8. Result

      Tip:

      After the signal check is completed, check for test mode (signal check mode) DTCs to confirm the system status.

      Condition

      Procedure

      Test mode (signal check mode) DTC is output

      Repair the faulty part and enter Signal Check again

      Test mode (signal check mode) DTCs are cleared

      No problem

    9. End of test mode (signal check mode)

      1. After completing the test mode (signal check mode), turn the power switch off and disconnect the GTS.

    10. Test mode (signal check mode) DTCs

      1. If a trouble code is displayed during the test mode (signal check mode) DTC check, check the diagnosis procedure listed for that code. For details of each code, refer to See page below.

        DTC No.

        Detection Item

        See page

        C2181/81

        Transmitter ID1 not received

        Click hereClick here

        C2182/82

        Transmitter ID2 not received

        Click hereClick here

        C2183/83

        Transmitter ID3 not received

        Click hereClick here

        C2184/84

        Transmitter ID4 not received

        Click hereClick here

        C2185/85*

        Transmitter ID5 not received

        Click hereClick here

        C2198/98

        Initialization switch error

        Click hereClick here

        • *: w/ Full Size Spare Tire
