PTC HEATER ASSEMBLY INSTALLATION

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

  • A bolt without a torque specification is shown in the standard bolt chart.

    Click here

PROCEDURE

  1. INSTALL QUICK HEATER ASSEMBLY

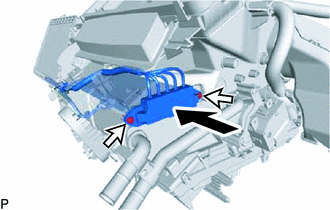

    1. E269735

      Insert the quick heater assembly as shown in the illustration.

    2. Install the quick heater assembly with the 2 screws.

  2. INSTALL AIR CONDITIONING RADIATOR ASSEMBLY

    Click here
