REAR DOOR COURTESY SWITCH REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. REMOVE REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY

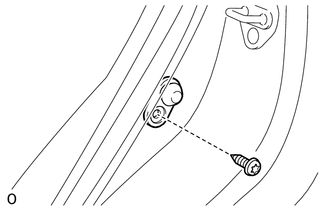

    E257072

    1. Using a T30 "TORX" socket wrench, remove the screw.

    2. Disconnect the connector and remove the rear door courtesy light switch assembly.
