OUTER REAR VIEW MIRROR REASSEMBLY

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The following procedure is for the LH side.

PROCEDURE


  1. INSTALL NO. 2 OUTER MIRROR COVER (for LED Type Turn Signal Light)

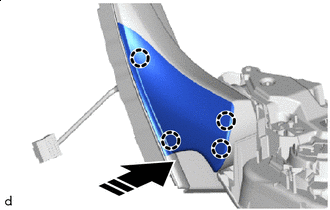

    1. B008MCTC02
      B008LJK Install in this Direction

      Engage the claws to install the No. 2 outer mirror cover as shown in the illustration.

  2. INSTALL NO. 2 OUTER MIRROR COVER (for Bulb Type Turn Signal Light)


    1. w/ Illumination:

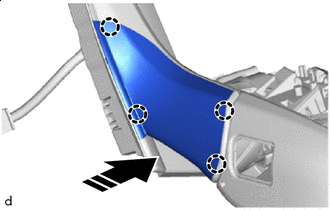

      1. B008KH5C02
        B008LJK Install in this Direction

        Engage the claws to install the No. 2 outer mirror cover as shown in the illustration.

  3. INSTALL OUTER MIRROR LIGHT ASSEMBLY (for LED Type Turn Signal Light)

    Click here

  4. INSTALL OUTER MIRROR LIGHT ASSEMBLY (for Bulb Type Turn Signal Light)


    1. w/ Illumination:

      Click here

  5. INSTALL SIDE TURN SIGNAL LIGHT ASSEMBLY (for LED Type Turn Signal Light)

    Click here

  6. INSTALL SIDE TURN SIGNAL LIGHT BULB (for Bulb Type Turn Signal Light)

    Click here

  7. INSTALL OUTER MIRROR COVER (for LED Type Turn Signal Light)

    Click here

  8. INSTALL OUTER MIRROR COVER (for Bulb Type Turn Signal Light)

    Click here

  9. INSTALL OUTER MIRROR (for LED Type Turn Signal Light)

    Click here

  10. INSTALL OUTER MIRROR (for Bulb Type Turn Signal Light)

    Click here
