LANE DEPARTURE ALERT SYSTEM(w/ Steering Control)


  1. OPERATION


    1. The headup display displays the lane markers and warning icons.

      Condition Headup Display*1

      • LDA main switch off

      		 Not Display

      • LDA main switch on

      • Lane markers not detected

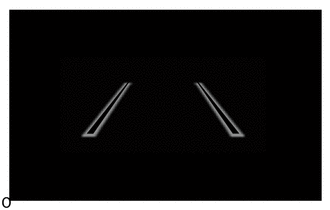

      		 B002FOH

      • LDA main switch on

      • Lane marker detected*2

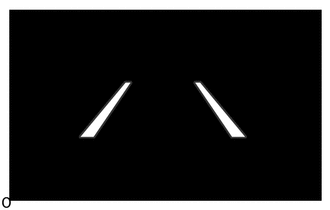

      		 B002F6F

      • LDA main switch on

      • Lane marker detected*2

      • Lane departure alert function operating

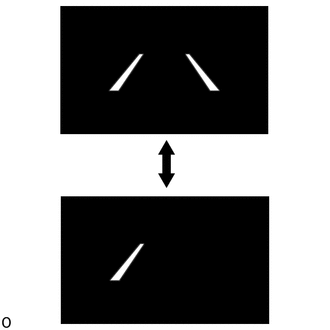

      		 B002F5N
      The lane marker icons blink

      Tech Tips

      *1: These illustrations are examples.

      *2: The lane markers are displayed independently on the left and right sides depending on the detection condition.
