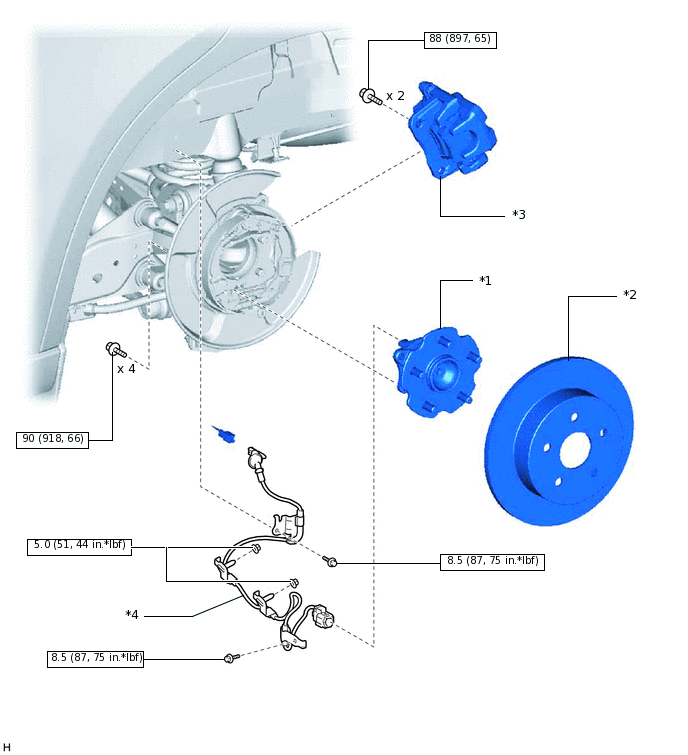

REAR SPEED SENSOR(for 2WD) COMPONENTS

*1	REAR AXLE HUB AND BEARING ASSEMBLY LH (SKID CONTROL SENSOR)	*2	REAR DISC
*3	REAR DISC BRAKE CYLINDER MOUNTING LH	*4	SKID CONTROL SENSOR WIRE
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

*1

REAR AXLE HUB AND BEARING ASSEMBLY LH (SKID CONTROL SENSOR)

*2

REAR DISC

*3

REAR DISC BRAKE CYLINDER MOUNTING LH

*4

SKID CONTROL SENSOR WIRE

N*m (kgf*cm, ft.*lbf): Specified torque

-
