TIRE PRESSURE WARNING SYSTEM TERMINALS OF ECU
-
*A
for Air Bag Caution Label with "9L" Identification Mark
*B
except Air Bag Caution Label with "9L" Identification Mark for ECE-R64 Type
*C
except Air Bag Caution Label with "9L" Identification Mark for FMVSS138 Type
-
-

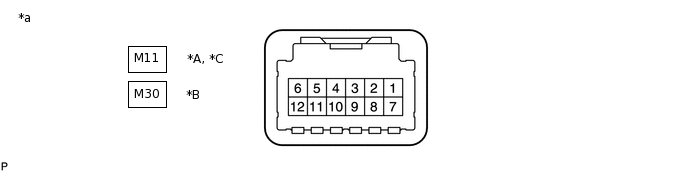

*a
Front view of wire harness connector
(to Tire Pressure Warning ECU and Receiver)
-
-
CHECK TIRE PRESSURE WARNING ECU AND RECEIVER
Disconnect the tire pressure warning ECU and receiver M11*1, *3 or M30*2 connector and measure the voltage or resistance on the wire harness side.
*1: for Air Bag Caution Label with "9L" Identification Mark
*2: except Air Bag Caution Label with "9L" Identification Mark for ECE-R64 Type
*3: except Air Bag Caution Label with "9L" Identification Mark for FMVSS138 Type
Table 1. for Air Bag Caution Label with "9L" Identification Mark, except Air Bag Caution Label with "9L"Identification Mark for FMVSS138 Type Terminal No. (Symbol)
Wiring Color
Terminal Description
Condition
Specified Condition
M11-1 (IG) - M11-12 (E)
L - W-B
IG power source
Power switch on (IG)
10 to 16 V
M11-7 (+B) - M11-12 (E)
R - W-B
Power supply (from auxiliary battery)
Always
10 to 16 V
M11-12 (E) - Body ground
W-B - Body ground
Ground
Always
Below 1 Ω
Table 2. except Air Bag Caution Label with "9L" Identification Mark for ECE-R64 Type Terminal No. (Symbol)
Wiring Color
Terminal Description
Condition
Specified Condition
M30-1 (IG) - M30-12 (GND)
L - W-B
IG power source
Power switch on (IG)
10 to 16 V
M30-12 (GND) - Body ground
W-B - Body ground
Ground
Always
Below 1 Ω
Connect the tire pressure warning ECU and receiver M11*1, *3 or M30*2 connector.
*1: for Air Bag Caution Label with "9L" Identification Mark
*2: except Air Bag Caution Label with "9L" Identification Mark for ECE-R64 Type
*3: except Air Bag Caution Label with "9L" Identification Mark for FMVSS138 Type
Measure the voltage and resistance according to the value(s) in the table below. If the result is not as specified, the ECU may have a malfunction.
Tip:Inspect the connectors from the back side while the connectors are connected.
*A
for Air Bag Caution Label with "9L" Identification Mark
*B
except Air Bag Caution Label with "9L" Identification Mark for ECE-R64 Type
*C
except Air Bag Caution Label with "9L" Identification Mark for FMVSS138 Type
-
-

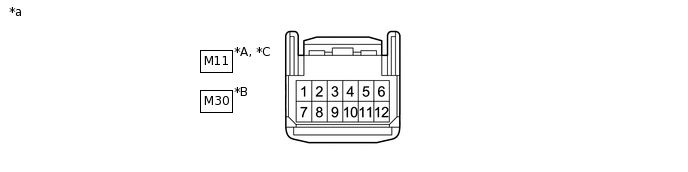

*a
Component with harness connected
(Tire Pressure Warning ECU and Receiver)
-
-
Table 3. for Air Bag Caution Label with "9L" Identification Mark, except Air Bag Caution Label with "9L"Identification Mark for FMVSS138 Type Terminal No. (Symbol)
Wiring Color
Terminal Description
Condition
Specified Condition
M11-3 (CLSW) - M11-12 (E)
V - W-B
Tire pressure warning reset switch
Power switch on (IG)
Tire pressure warning reset switch ON
Below 1.5 V
Power switch on (IG)
Tire pressure warning reset switch OFF
8 to 15 V
M11-4 (RDA) - M11-12 (E)
G - W-B
Output signals
Power switch on (IG)
Pulse generation (see waveform 1)
M11-5 (PRG) - M11-12 (E)
W - W-B
Input signals
Power switch on (IG)
Pulse generation (see waveform 1)
Table 4. except Air Bag Caution Label with "9L" Identification Mark for ECE-R64 Type Terminal No. (Symbol)
Wiring Color
Terminal Description
Condition
Specified Condition
M30-3 (CLSW) - M30-12 (GND)
V - W-B
Tire pressure warning reset switch
Power switch on (IG)
Tire pressure warning reset switch ON
Below 1.5 V
Power switch on (IG)
Tire pressure warning reset switch OFF
8 to 15 V
M30-4 (RDA2) - M30-12 (GND)
G - W-B
Output signals
Power switch on (IG)
Pulse generation (see waveform 1)
M30-5 (PRG2) - M30-12 (GND)
W - W-B
Input signals
Power switch on (IG)
Pulse generation (see waveform 1)
-

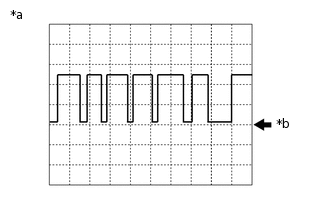

*a
Example
*b
GND
Using an oscilloscope, check waveform 1.
Table 5. Waveform 1: Item
Contents
Terminal
M11-4 (RDA) - M11-12 (E)*1, *3
M11-5 (PRG) - M11-12 (E)*1, *3
M30-4 (RDA2) - M30-12 (GND)*2
M30-5 (PRG2) - M30-12 (GND)*2
Tool setting
5 V/DIV, 5 ms./DIV.
Vehicle condition
Power switch on (IG)
*1: for Air Bag Caution Label with "9L" Identification Mark
*2: except Air Bag Caution Label with "9L" Identification Mark for ECE-R64 Type
*3: except Air Bag Caution Label with "9L" Identification Mark for FMVSS138 Type
Tip:The waveform shown in the illustration is an example. If the tester displays a waveform that alternates between high and low, where high is a voltage that is between the IG power source voltage and a voltage 2.2 V lower than the IG power source voltage, and where low is a voltage of between 0 and 1.2 V, the ECU can be judged normal.
