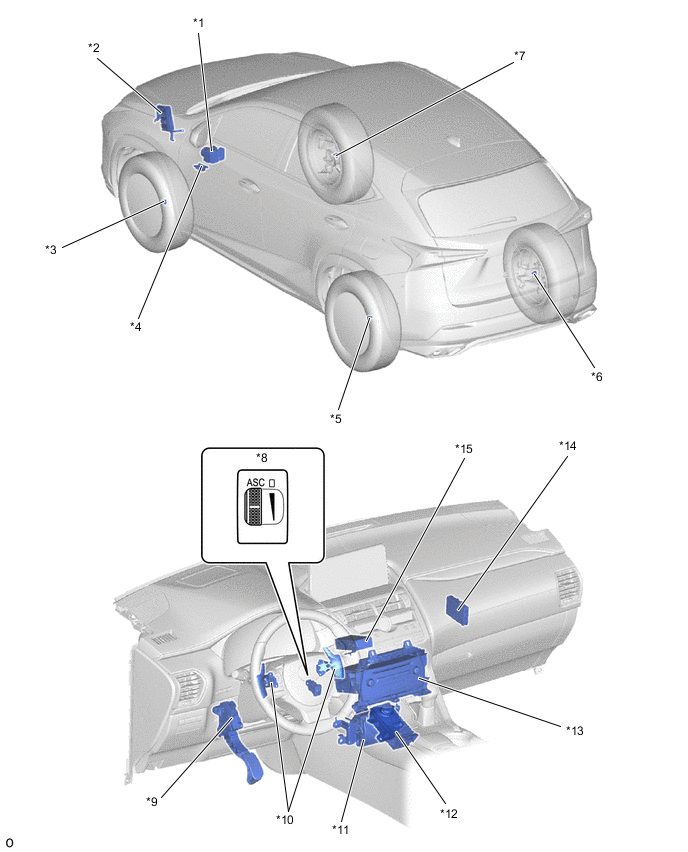

ASC SYSTEM
| *1 | Brake Actuator Assembly
|
*2 | ECM |
| *3 | Front Speed Sensor LH | *4 | Park/Neutral Position Sensor Assembly |
| *5 | Rear Speed Sensor LH | *6 | Rear Speed Sensor RH |
| *7 | Front Speed Sensor RH | *8 | Vehicle Sound Switch |
| *9 | Accelerator Pedal Sensor Assembly | *10 | Paddle Shift Switch (Transmission Shift Switch Assembly) |
| *11 | No. 1 Speaker with Box Assembly | *12 | Integration Control and Panel Assembly
|
| *13 | Radio Receiver Assembly | *14 | Central Gateway ECU (Network Gateway ECU) |
| *15 | Stereo Component Equalizer Assembly | - | - |
