BACK DOOR OUTSIDE GARNISH(for Lower Side) REASSEMBLY

PROCEDURE

1. INSTALL UPPER BACK DOOR GARNISH MOULDING PROTECTOR

   Tip:

   When installing the upper back door garnish moulding protector, heat the lower back door outside garnish sub-assembly using a heat light.

   Standard

   Item	Temperature
   Lower Back Door Outside Garnish Sub-assembly	20 to 30°C (68 to 86°F)

   Note:

   Do not heat the lower back door outside garnish sub-assembly excessively.

   1. Clean the lower back door outside garnish sub-assembly surface.

      1. Using a heat light, heat the lower back door outside garnish sub-assembly surface.

      2. Remove the double-sided tape from the lower back door outside garnish sub-assembly.

      3. Wipe off any tape adhesive residue with cleaner.

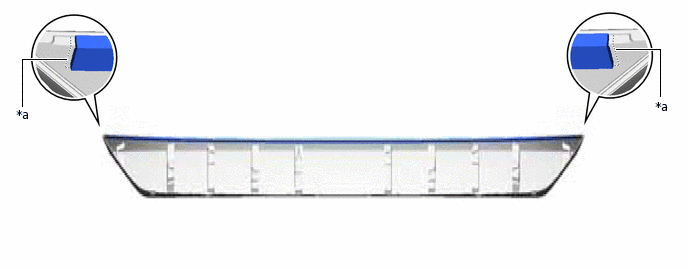

   2. Install a new upper back door garnish moulding protector as shown in the illustration.

      1. Using a heat light, heat the lower back door outside garnish sub-assembly.

      2. Remove the peeling paper from the face of the upper back door garnish moulding protector.

         Tip:

         After removing the peeling paper, keep the exposed adhesive free from foreign matter.

      3. Align the upper back door garnish moulding protector with the mark-off line of the lower back door outside garnish sub-assembly, and then install it.

         Tip:

         Press the upper back door garnish moulding protector firmly to install it.



         *a

         Mark-off Line

         -

         -

2. INSTALL LOWER BACK DOOR GARNISH MOULDING PROTECTOR

   Tip:

   When installing the lower back door garnish moulding protector, heat the lower back door outside garnish sub-assembly using a heat light.

   Standard

   Item	Temperature
   Lower Back Door Outside Garnish Sub-assembly	20 to 30°C (68 to 86°F)

   Note:

   Do not heat the lower back door outside garnish sub-assembly excessively.

   1. Clean the lower back door outside garnish sub-assembly surface.

      1. Using a heat light, heat the lower back door outside garnish sub-assembly surface.

      2. Remove the double-sided tape from the lower back door outside garnish sub-assembly.

      3. Wipe off any tape adhesive residue with cleaner.

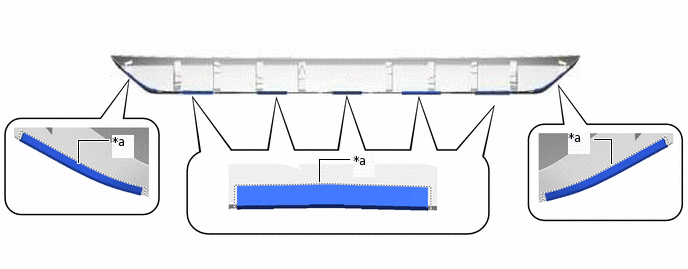

   2. Install 7 new lower back door garnish moulding protectors as shown in the illustration.

      1. Using a heat light, heat the lower back door outside garnish sub-assembly.

      2. Remove the peeling paper from the face of the 7 lower back door garnish moulding protectors.

         Tip:

         After removing the peeling paper, keep the exposed adhesive free from foreign matter.

      3. Align the 7 lower back door garnish moulding protectors with the mark-off line of the lower back door outside garnish sub-assembly, and then install it.

         Tip:

         Press the lower back door garnish protector firmly to install it.



         *a

         Mark-off Line

         -

         -
