HEIGHT CONTROL SENSOR REMOVAL

PROCEDURE

1. REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH



   1. Disconnect the connector.

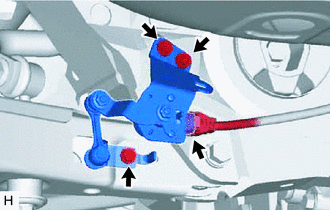

   2. Remove the 3 bolts and rear height control sensor sub-assembly LH.
