DOOR CONTROL SWITCH INSPECTION

PROCEDURE

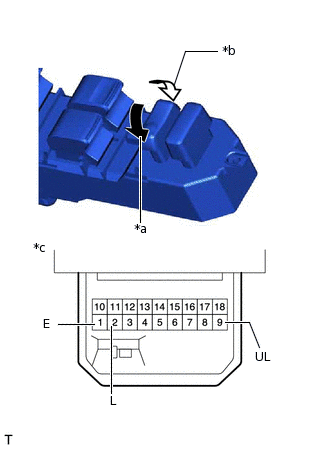

1. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (for Driver Side)

   1.

      *a	Unlock
      *b	Lock
      *c	Component without harness connected (Power Window Regulator Master Switch Assembly)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection	Switch Condition	Specified Condition
      2 (L) - 1 (E)	Lock	Below 1 Ω
      2 (L) - 1 (E)	Off	10 kΩ or higher
      9 (UL) - 1 (E)	Unlock	Below 1 Ω
      9 (UL) - 1 (E)	Off	10 kΩ or higher

      If the result is not as specified, replace the power window regulator master switch assembly.

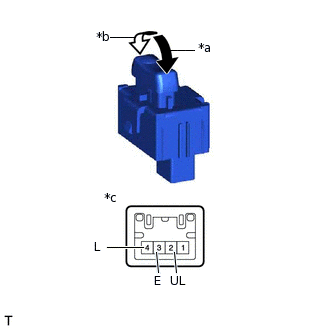

2. INSPECT DOOR CONTROL SWITCH (for Front Passenger Side, w/ Door Control Switch)

   1.

      *a	Unlock
      *b	Lock
      *c	Component without harness connected (Door Control Switch)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection	Switch Condition	Specified Condition
      4 (L) - 3 (E)	Lock	Below 1 Ω
      4 (L) - 3 (E)	Off	10 kΩ or higher
      2 (UL) - 3 (E)	Unlock	Below 1 Ω
      2 (UL) - 3 (E)	Off	10 kΩ or higher

      If the result is not as specified, replace the door control switch.
