HYBRID BATTERY SYSTEM, Diagnostic DTC:P0B3D-123,P0B42-123,P0B47-123,P0B4C-123,P0B51-123,P0B56-123,P0B5B-123,P0B60-123,P0B65-123,P0B6A-123,P0B6F-123,P0B74-123,P0B79-123,P0B7E-123,P0B83-123,P0B88-123,P0B8D-123,P0B92-123 and P308A-123

DTC Code DTC Name
P0B3D-123 Hybrid Battery Voltage Sensor "A" Circuit Low
P0B42-123 Hybrid Battery Voltage Sensor "B" Circuit Low
P0B47-123 Hybrid Battery Voltage Sensor "C" Circuit Low
P0B4C-123 Hybrid Battery Voltage Sensor "D" Circuit Low
P0B51-123 Hybrid Battery Voltage Sensor "E" Circuit Low
P0B56-123 Hybrid Battery Voltage Sensor "F" Circuit Low
P0B5B-123 Hybrid Battery Voltage Sensor "G" Circuit Low
P0B60-123 Hybrid Battery Voltage Sensor "H" Circuit Low
P0B65-123 Hybrid Battery Voltage Sensor "I" Circuit Low
P0B6A-123 Hybrid Battery Voltage Sensor "J" Circuit Low
P0B6F-123 Hybrid Battery Voltage Sensor "K" Circuit Low
P0B74-123 Hybrid Battery Voltage Sensor "L" Circuit Low
P0B79-123 Hybrid Battery Voltage Sensor "M" Circuit Low
P0B7E-123 Hybrid Battery Voltage Sensor "N" Circuit Low
P0B83-123 Hybrid Battery Voltage Sensor "O" Circuit Low
P0B88-123 Hybrid Battery Voltage Sensor "P" Circuit Low
P0B8D-123 Hybrid Battery Voltage Sensor "Q" Circuit Low
P0B92-123 Hybrid Battery Voltage Sensor "R" Circuit Low
P308A-123 Hybrid Battery Voltage Sensor All Circuits Low

DESCRIPTION

Refer to the description for DTC P0A80-123.

Click here

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Warning Indicate

P0B3D-123

Hybrid Battery Voltage Sensor "A" Circuit Low

The battery block voltage detection line has a malfunction and any of the battery block voltages become lower than the specified value (open).

(1 trip detection logic)

  • Battery voltage sensor

  • HV battery

Comes on

Master Warning Light:

Comes on

P0B42-123

Hybrid Battery Voltage Sensor "B" Circuit Low

The battery block voltage detection line has a malfunction and any of the battery block voltages become lower than the specified value (open).

(1 trip detection logic)

  • Battery voltage sensor

  • HV battery

Comes on

Master Warning Light:

Comes on

P0B47-123

Hybrid Battery Voltage Sensor "C" Circuit Low

The battery block voltage detection line has a malfunction and any of the battery block voltages become lower than the specified value (open).

(1 trip detection logic)

  • Battery voltage sensor

  • HV battery

Comes on

Master Warning Light:

Comes on

P0B4C-123

Hybrid Battery Voltage Sensor "D" Circuit Low

The battery block voltage detection line has a malfunction and any of the battery block voltages become lower than the specified value (open).

(1 trip detection logic)

  • Battery voltage sensor

  • HV battery

Comes on

Master Warning Light:

Comes on

P0B51-123

Hybrid Battery Voltage Sensor "E" Circuit Low

The battery block voltage detection line has a malfunction and any of the battery block voltages become lower than the specified value (open).

(1 trip detection logic)

  • Battery voltage sensor

  • HV battery

Comes on

Master Warning Light:

Comes on

P0B56-123

Hybrid Battery Voltage Sensor "F" Circuit Low

The battery block voltage detection line has a malfunction and any of the battery block voltages become lower than the specified value (open).

(1 trip detection logic)

  • Battery voltage sensor

  • HV battery

Comes on

Master Warning Light:

Comes on

P0B5B-123

Hybrid Battery Voltage Sensor "G" Circuit Low

The battery block voltage detection line has a malfunction and any of the battery block voltages become lower than the specified value (open).

(1 trip detection logic)

  • Battery voltage sensor

  • HV battery

Comes on

Master Warning Light:

Comes on

P0B60-123

Hybrid Battery Voltage Sensor "H" Circuit Low

The battery block voltage detection line has a malfunction and any of the battery block voltages become lower than the specified value (open).

(1 trip detection logic)

  • Battery voltage sensor

  • HV battery

Comes on

Master Warning Light:

Comes on

P0B65-123

Hybrid Battery Voltage Sensor "I" Circuit Low

The battery block voltage detection line has a malfunction and any of the battery block voltages become lower than the specified value (open).

(1 trip detection logic)

  • Battery voltage sensor

  • HV battery

Comes on

Master Warning Light:

Comes on

P0B6A-123

Hybrid Battery Voltage Sensor "J" Circuit Low

The battery block voltage detection line has a malfunction and any of the battery block voltages become lower than the specified value (open).

(1 trip detection logic)

  • Battery voltage sensor

  • HV battery

Comes on

Master Warning Light:

Comes on

P0B6F-123

Hybrid Battery Voltage Sensor "K" Circuit Low

The battery block voltage detection line has a malfunction and any of the battery block voltages become lower than the specified value (open).

(1 trip detection logic)

  • Battery voltage sensor

  • HV battery

Comes on

Master Warning Light:

Comes on

P0B74-123

Hybrid Battery Voltage Sensor "L" Circuit Low

The battery block voltage detection line has a malfunction and any of the battery block voltages become lower than the specified value (open).

(1 trip detection logic)

  • Battery voltage sensor

  • HV battery

Comes on

Master Warning Light:

Comes on

P0B79-123

Hybrid Battery Voltage Sensor "M" Circuit Low

The battery block voltage detection line has a malfunction and any of the battery block voltages become lower than the specified value (open).

(1 trip detection logic)

  • Battery voltage sensor

  • HV battery

Comes on

Master Warning Light:

Comes on

P0B7E-123

Hybrid Battery Voltage Sensor "N" Circuit Low

The battery block voltage detection line has a malfunction and any of the battery block voltages become lower than the specified value (open).

(1 trip detection logic)

  • Battery voltage sensor

  • HV battery

Comes on

Master Warning Light:

Comes on

P0B83-123

Hybrid Battery Voltage Sensor "O" Circuit Low

The battery block voltage detection line has a malfunction and any of the battery block voltages become lower than the specified value (open).

(1 trip detection logic)

  • Battery voltage sensor

  • HV battery

Comes on

Master Warning Light:

Comes on

P0B88-123

Hybrid Battery Voltage Sensor "P" Circuit Low

The battery block voltage detection line has a malfunction and any of the battery block voltages become lower than the specified value (open).

(1 trip detection logic)

  • Battery voltage sensor

  • HV battery

Comes on

Master Warning Light:

Comes on

P0B8D-123

Hybrid Battery Voltage Sensor "Q" Circuit Low

The battery block voltage detection line has a malfunction and any of the battery block voltages become lower than the specified value (open).

(1 trip detection logic)

  • Battery voltage sensor

  • HV battery

Comes on

Master Warning Light:

Comes on

P0B92-123

Hybrid Battery Voltage Sensor "R" Circuit Low

The battery block voltage detection line has a malfunction and any of the battery block voltages become lower than the specified value (open).

(1 trip detection logic)

  • Battery voltage sensor

  • HV battery

Comes on

Master Warning Light:

Comes on

P308A-123

Hybrid Battery Voltage Sensor All Circuits Low

The battery block voltage detection line is open (all blocks) or all battery block voltages become lower than the specified value (possibility of open or loosely connected connector).

(1 trip detection logic)

  • Battery voltage sensor

  • HV battery

Comes on

Master Warning Light:

Comes on
Tip:

  • Values smaller than 2.0 V may not be shown in the Data List because a fail-safe value is substituted.

Table 1. Related Data List

DTC No.

Data List

  • P0B3D-123

  • P0B42-123

  • P0B47-123

  • P0B4C-123

  • P0B51-123

  • P0B56-123

  • P0B5B-123

  • P0B60-123

  • P0B65-123

  • P0B6A-123

  • P0B6F-123

  • P0B74-123

  • P0B79-123

  • P0B7E-123

  • P0B83-123

  • P0B88-123

  • P0B8D-123

  • P0B92-123

Battery Block Vol -V01 to V17

P308A-123

  • Power Resource VB

  • Battery Block Vol -V01 to V17

CAUTION / NOTICE / HINT

CAUTION:

  • Before inspecting the high-voltage system, take safety precautions to prevent electrical shocks, such as wearing insulated gloves and removing the service plug grip. After removing the service plug grip, put it in your pocket to prevent other technicians from accidentally reconnecting it while you are working on the high-voltage system.

  • After removing the service plug grip, wait for at least 10 minutes before touching any of the high-voltage connectors or terminals. After waiting for 10 minutes, check the voltage at the terminals in the inspection point in the inverter with converter assembly. The voltage should be 0 V before beginning work.

    Click here

    Tip:

    Waiting for at least 10 minutes is required to discharge the high-voltage capacitor inside the inverter with converter assembly.

  • When disposing of an HV battery, make sure to return it through an authorized collection agent who is capable of handling it safely. If the HV battery is returned via the manufacturer specified route, it will be returned properly and in a safe manner by an authorized collection agent.

Note:

After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

Click hereClick hereClick hereClick here

Tip:

After the repair, clear the DTCs and perform the following procedure to check that DTCs are not output.

  1. Turn the power switch on (IG) and wait for 10 seconds or more.

PROCEDURE

  1. CHECK DTC OUTPUT (HYBRID CONTROL)

    1. Connect the GTS to the DLC3.

    2. Turn the power switch on (IG).

    3. Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.

    4. Check and record any HV system DTCs, INF codes and freeze frame data.

    5. Read output DTCs.

      Powertrain > Hybrid Control > Trouble Codes

      Result

      Result

      Proceed to

      P0AFC-123 or P0A95-123 is not output.

      A

      P0AFC-123 or P0A95-123 is also output.

      B

    6. Turn the power switch off.

    7. Disconnect the GTS from the DLC3.

    B

    GO TO DTC CHART (HYBRID BATTERY SYSTEM)

    Click hereClick here

    A

  2. CHECK CONNECTOR CONNECTION CONDITION

    CAUTION:

    Be sure to wear insulated gloves.

    1. Check that the service plug grip is not installed.

      Note:

      After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair manual because this may cause a malfunction.

    2. Remove the No. 2 hybrid vehicle battery shield reinforcement.

      Click here

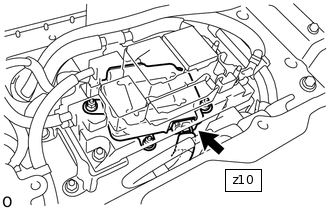

    3. C297249E02

      Check the connections of the z10 battery voltage sensor connector.

      Click here

      OK

      The connectors are connected securely and there are no contact problems.

      Result

      Result

      OK

      NG

    4. Install the No. 2 hybrid vehicle battery shield reinforcement.

    NG

    CONNECT SECURELY

    OK

  3. REPLACE BATTERY VOLTAGE SENSOR

    Click here

    Result

    Proceed to

    NEXT
    NEXT

  4. CLEAR DTC (HYBRID CONTROL)

    1. Connect the GTS to the DLC3.

    2. Turn the power switch on (IG).

    3. Enter the following menus: Powertrain / Hybrid Control / Clear DTCs.

    4. Clear the DTCs and freeze frame data.

      Powertrain > Hybrid Control > Clear DTCs

      Note:

      When DTCs are cleared, freeze frame data and INF codes are also cleared.

    5. Turn the power switch off.

    6. Disconnect the GTS from the DLC3.

    7. Perform a reproduction test.

    Result

    Proceed to

    NEXT
    NEXT

  5. RECONFIRM DTC OUTPUT (HYBRID CONTROL)

    1. Connect the GTS to the DLC3.

    2. Turn the power switch on (IG).

    3. Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.

    4. Read output DTCs.

      Powertrain > Hybrid Control > Trouble Codes

      Result

      Result

      Proceed to

      Hybrid battery voltage sensor circuit DTCs for this diagnostic procedure are not output

      A

      Hybrid battery voltage sensor circuit DTCs for this diagnostic procedure are output

      B

    5. Turn the power switch off.

    6. Disconnect the GTS from the DLC3.

    A

    RECOVERY TO NORMAL

    B

    REPLACE HV BATTERY

    Click here
