LANE DEPARTURE ALERT SYSTEM(w/ Steering Control)


  1. OPERATION


    1. The combination meter assembly illuminates the indicator lights or displays an indicator on the multi-information display and sounds a multi buzzer (which is built into the combination meter assembly) in accordance with the respective condition.

      Lane Departure Alert System On and Dynamic Radar Cruise Control System Off
      Condition Multi-information Display LDA Indicator Light Steering Indicator Light Multi Buzzer

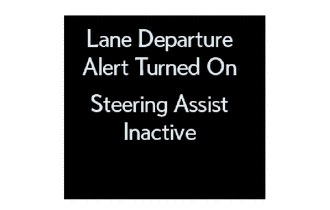

      • Steering Assist Off

      		 A01GGD1 Illuminates - -

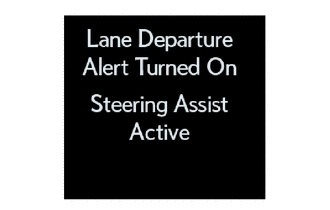

      • Steering Assist On

      		 A01GGUX Illuminates - -

      • Approxima tely 50 km/h (32 mph) or more

      • Lane Markers Not Detected

      		 B002F72 Illuminates - -

      • Approxima tely 50 km/h (32 mph) or more

      • Lane Markers Detected

      		 B002FQ9 Illuminates - -
      White lines are displayed independently on the left and right sides depending on the detection condition.

      • Steering Assist Unavailable

      • Lane Departure Alert Operating

      		 B002FNG Illuminates - Sounds

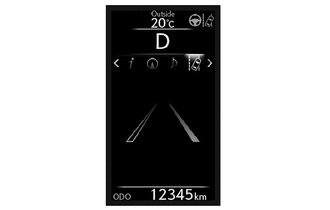

      • Steering Assist Available

      • Lane Departure Alert Operating

      • Steering Assist Operating

      		 A01GGCC Illuminates Illuminates Sounds
      Lane Departure Alert System On and Dynamic Radar Cruise Control System On
      Condition Multi-information Display LDA Indicator Light Steering Indicator Light Multi Buzzer

      • Approxima tely 50 km/h (32 mph) or more

      • Lane Markers Not Detected

      		 B002FD9 Illuminates - -

      • Approxima tely 50 km/h (32 mph) or more

      • One Lane Marker Detected

      		 B002FRR Illuminates - -

      • Approxima tely 50 km/h (32 mph) or more

      • Lane Markers Detected

      		 B002FA7 Illuminates - -

      • Approxima tely 50 km/h (32 mph) or more

      • Lane Markers Detected

      • Lane Departure Alert Operating

      		 B002FD6 Illuminates - Sounds

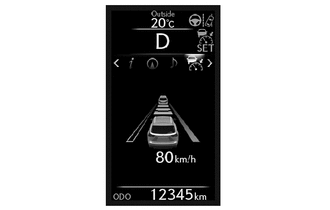

      • Approxima tely 50 km/h (32 mph) or more

      • Lane Markers Detected

      • Lane Departure Alert Operating

      • Steering Assist Operating

      		 A01GGZK Illuminates Illuminates Sounds
      Warning Messages
      Condition Multi-information Display Master Warning Light Multi Buzzer
      Temperature of Lane Departure Warning Camera is Abnormal B002FQ3 Illuminates Sounds
      Vehicle Speed is Approximately 50 km/h (32 mph) or Less B002FR9 - -

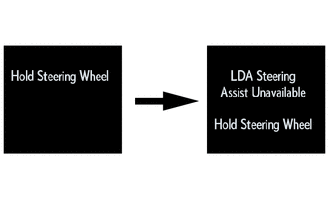

      With main Switch is On (Steering Assist Available), No Hands are Detected on Steering Wheel A01GH1N Illuminates* Sounds*
      System Malfunction B002FOW Illuminates Sounds

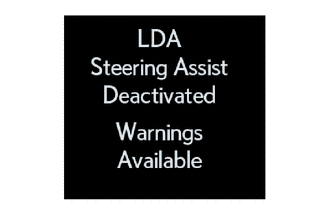

      Electric Power Steering System does not Operate Normally due to Electric Power Steering System Malfunction or Power Source Voltage Decrease, etc. A01GH3S Illuminates Sounds

      • *: When display changes
