SLIDING ROOF HOUSING REASSEMBLY

PROCEDURE

  1. INSTALL ROOF WIND DEFLECTOR PANEL SUB-ASSEMBLY

    1. B338935C01

      *1

      Guide

      *2

      Spring

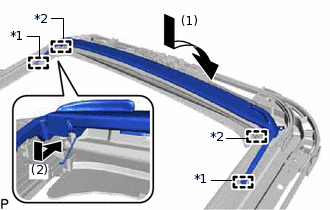

      Attach the 2 guides in the direction indicated by the arrow (1) in the illustration to install the roof wind deflector panel sub-assembly.

    2. Attach the 2 springs in the direction indicated by the arrow (2) in the illustration.

      Note:

      Make sure that the springs are securely installed.

  2. INSTALL SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY

    1. B338932

      Hold down the roof wind deflector panel sub-assembly.

    2. B338936C01

      *1

      Protective Tape

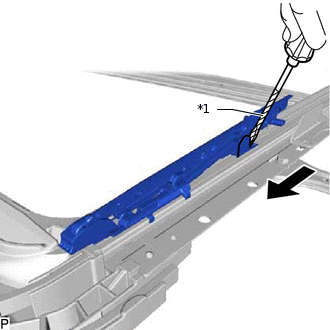

      Using a screwdriver, slide the sliding roof drive cable sub-assembly in the direction indicated by the arrow in the illustration to install it.

      Tip:

      • Tape the screwdriver tip before use.

      • Use the same procedure for the other sliding roof drive cable sub-assembly.

  3. INSTALL REAR ROOF DRIP CHANNEL

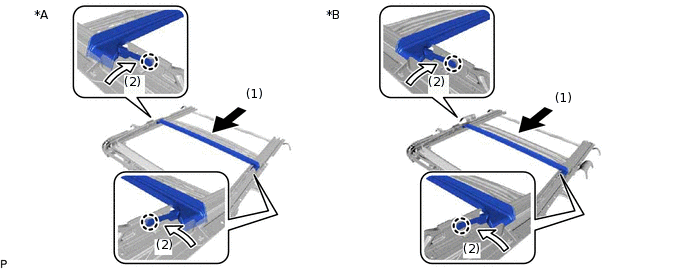

    1. Insert the rear roof drip channel in the direction indicated by the arrow (1) in the illustration.

      B341382C01

      *A

      w/o Center Bracket

      *B

      w/ Center Bracket

    2. Attach the 2 claws in the direction indicated by the arrow (2) in the illustration to install the rear roof drip channel.

  4. ADJUST FULLY CLOSED POSITION

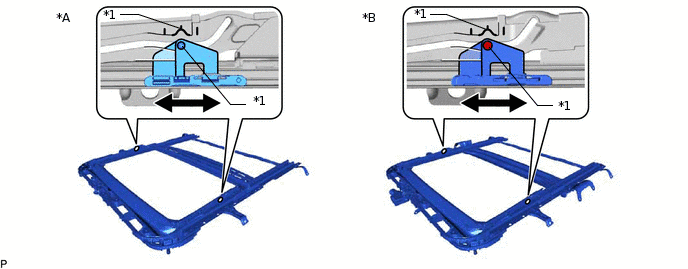

    1. Using a screwdriver, slide the sliding roof drive cable sub-assembly in either direction indicated by the arrows in the illustration and alignment marks.

      B341383C01

      *A

      w/o Center Bracket

      *B

      w/ Center Bracket

      *1

      Alignment Mark

      -

      -
      Tip:

      Tape the screwdriver tip before use.

  5. INSTALL SUNSHADE TRIM SUB-ASSEMBLY

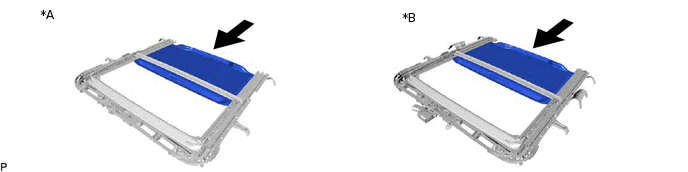

    1. Insert the sunshade trim sub-assembly into the sliding roof housing sub-assembly.

      B341380C01

      *A

      w/o Center Bracket

      *B

      w/ Center Bracket

    2. Install the sliding roof piece sub-assembly LH with the screw.

      Tip:

      Use the same procedure for the RH side.

  6. INSTALL SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY

    1. Install the sliding roof drive gear sub-assembly with the 2 bolts.

      5.4 N*m

      55 kgf*cm

      48 in.*lbf

    2. Attach the guide and pin.

    3. Attach the claw and install the map light bracket.
