LIGHTING SYSTEM PARTS LOCATION

ILLUSTRATION

E321293C01

*A

for Hatchback

-

-

*1

BACK-UP LIGHT SWITCH ASSEMBLY (for Manual Transaxle or Multi-mode Manual Transaxle)

*2

H-LP RELAY

*3

PARK/NEUTRAL POSITION SWITCH ASSEMBLY (for CVT)

*4

DIMMER RELAY

*5

HEADLIGHT ASSEMBLY LH

- LIGHT CONTROL ECU LH (for LED Headlight)

*6

HEADLIGHT ASSEMBLY RH

- LIGHT CONTROL ECU RH (for LED Headlight)

*7

FOG LIGHT ASSEMBLY LH (w/ Front Fog Light)

*8

FOG LIGHT ASSEMBLY RH (w/ Front Fog Light)

*9

SIDE TURN SIGNAL LIGHT ASSEMBLY LH

*10

SIDE TURN SIGNAL LIGHT ASSEMBLY RH

*11

ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY

- H-LP-MAIN FUSE

- H-LP RH-LO FUSE

- H-LP LH-LO FUSE

- H-LP RH-HI FUSE

- H-LP LH-HI FUSE

- TURN&HAZ FUSE

- DRL RELAY

-

-

ILLUSTRATION

E321294C01

*A

for Wagon

-

-

*1

BACK-UP LIGHT SWITCH ASSEMBLY (for Manual Transaxle)

*2

H-LP RELAY

*3

PARK/NEUTRAL POSITION SWITCH ASSEMBLY (for CVT)

*4

DIMMER RELAY

*5

HEADLIGHT ASSEMBLY LH

- LIGHT CONTROL ECU LH (for LED Headlight)

*6

HEADLIGHT ASSEMBLY RH

- LIGHT CONTROL ECU RH (for LED Headlight)

*7

FOG LIGHT ASSEMBLY LH (w/ Front Fog Light)

*8

FOG LIGHT ASSEMBLY RH (w/ Front Fog Light)

*9

SIDE TURN SIGNAL LIGHT ASSEMBLY LH

*10

SIDE TURN SIGNAL LIGHT ASSEMBLY RH

*11

ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY

- H-LP-MAIN FUSE

- H-LP RH-LO FUSE

- H-LP LH-LO FUSE

- H-LP RH-HI FUSE

- H-LP LH-HI FUSE

- TURN&HAZ FUSE

- DRL RELAY

-

-

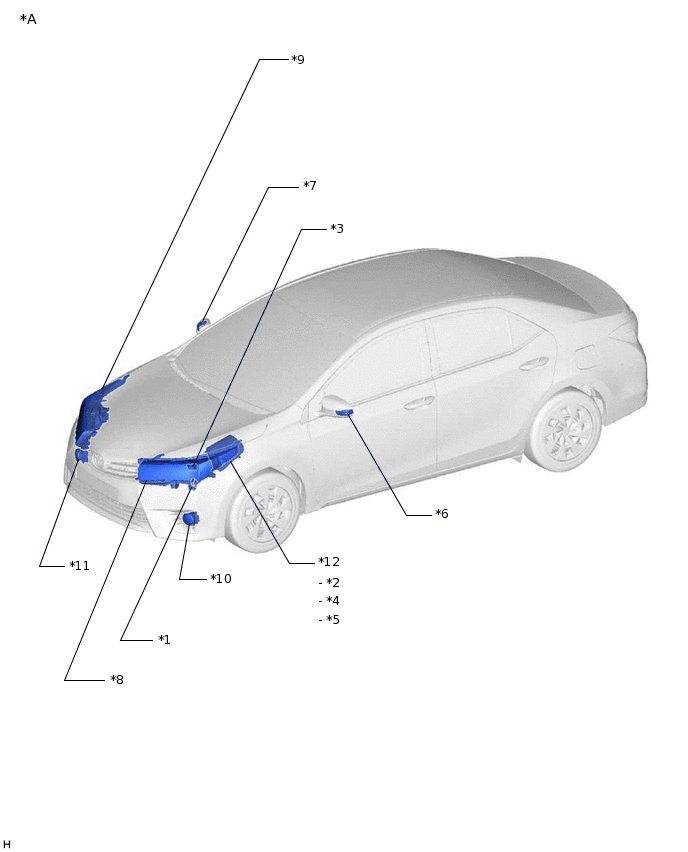

ILLUSTRATION

E276304C04

*A

for Sedan

-

-

*1

BACK-UP LIGHT SWITCH ASSEMBLY (for Manual Transaxle)

*2

H-LP RELAY

*3

PARK/NEUTRAL POSITION SWITCH ASSEMBLY (for CVT)

*4

DIMMER RELAY

*5

DRL RELAY

*6

SIDE TURN SIGNAL LIGHT ASSEMBLY LH

*7

SIDE TURN SIGNAL LIGHT ASSEMBLY RH

*8

HEADLIGHT ASSEMBLY LH

*9

HEADLIGHT ASSEMBLY RH

*10

FOG LIGHT ASSEMBLY LH (w/ Front Fog Light)

*11

FOG LIGHT ASSEMBLY RH (w/ Front Fog Light)

*12

ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY

- H-LP-MAIN FUSE

- H-LP RH-LO FUSE

- H-LP LH-LO FUSE

- H-LP RH-HI FUSE

- H-LP LH-HI FUSE

- TURN&HAZ FUSE

ILLUSTRATION

E321295C01

*A

for Hatchback

-

-

*1

CENTER STOP LIGHT ASSEMBLY

*2

LICENSE PLATE LIGHT ASSEMBLY LH

*3

LICENSE PLATE LIGHT ASSEMBLY RH

*4

REAR COMBINATION LIGHT ASSEMBLY LH

*5

REAR COMBINATION LIGHT ASSEMBLY RH

*6

REAR LIGHT ASSEMBLY LH

*7

REAR LIGHT ASSEMBLY RH

*8

REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH

*9

REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY RH

-

-

ILLUSTRATION

E321296C01

*A

for Wagon

-

-

*1

CENTER STOP LIGHT ASSEMBLY

*2

LICENSE PLATE LIGHT ASSEMBLY LH

*3

LICENSE PLATE LIGHT ASSEMBLY RH

*4

REAR COMBINATION LIGHT ASSEMBLY LH

*5

REAR COMBINATION LIGHT ASSEMBLY RH

*6

REAR LIGHT ASSEMBLY LH

*7

REAR LIGHT ASSEMBLY RH

*8

REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH

*9

REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY RH

-

-

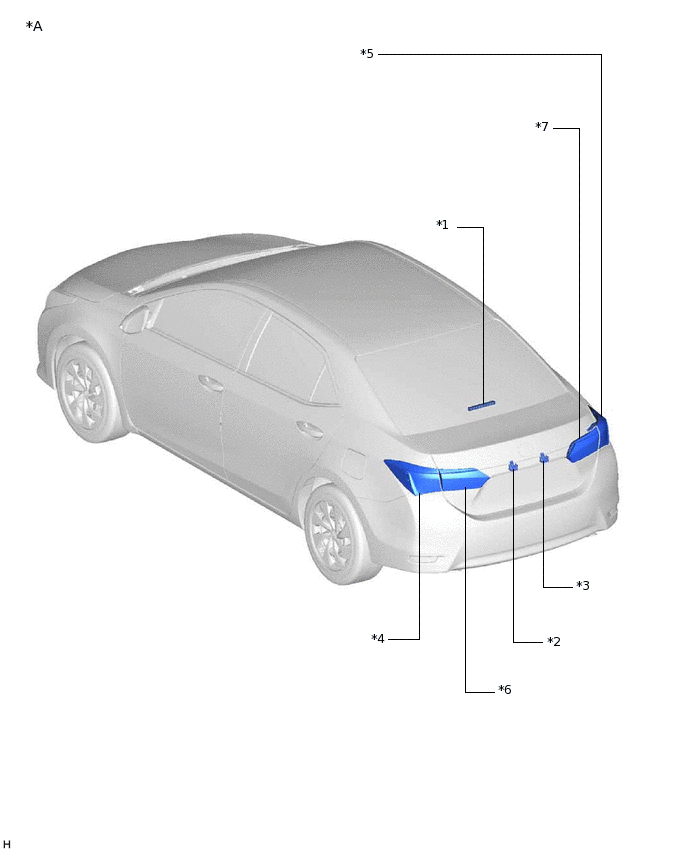

ILLUSTRATION

E276305C04

*A

for Sedan

-

-

*1

CENTER STOP LIGHT ASSEMBLY

*2

LICENSE PLATE LIGHT ASSEMBLY LH

*3

LICENSE PLATE LIGHT ASSEMBLY RH

*4

REAR COMBINATION LIGHT ASSEMBLY LH

*5

REAR COMBINATION LIGHT ASSEMBLY RH

*6

REAR LIGHT ASSEMBLY LH

*7

REAR LIGHT ASSEMBLY RH

-

-

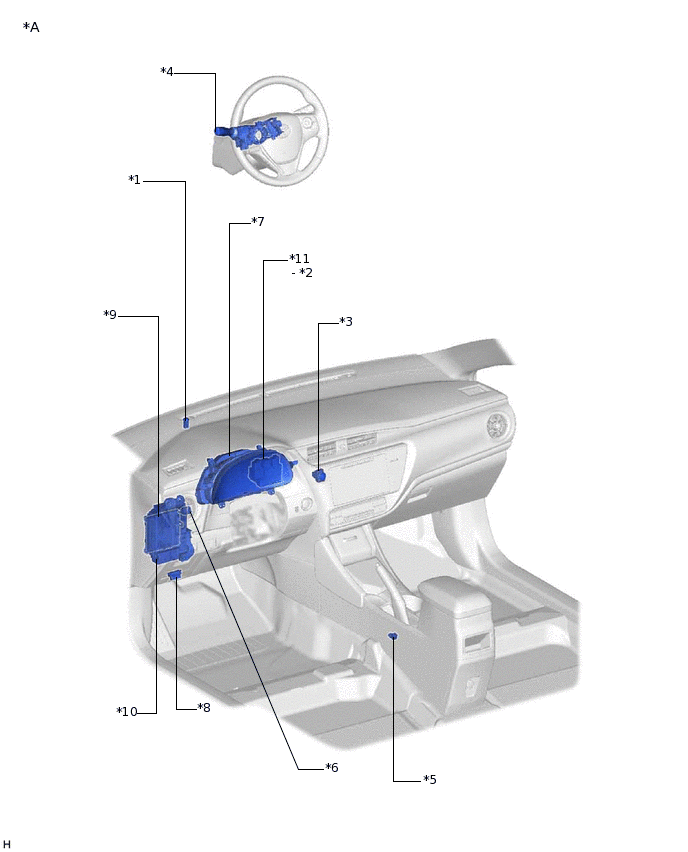

ILLUSTRATION

E321297C01

*A

for Hatchback (LHD) or Wagon (LHD)

-

-

*1

AUTOMATIC LIGHT CONTROL SENSOR

*2

FR FOG RELAY (w/ Front Fog Light)

*3

HAZARD WARNING SIGNAL SWITCH ASSEMBLY

*4

HEADLIGHT DIMMER SWITCH ASSEMBLY

*5

PARKING BRAKE SWITCH

*6

STOP LIGHT SWITCH ASSEMBLY

*7

COMBINATION METER ASSEMBLY

*8

DLC3

*9

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*10

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- TAIL RELAY

- FOG RR RELAY

- TAIL FUSE

- FOG FR FUSE (w/ Front Fog Light)

- FOG RR FUSE

*11

NO. 4 RELAY BLOCK ASSEMBLY

-

-

ILLUSTRATION

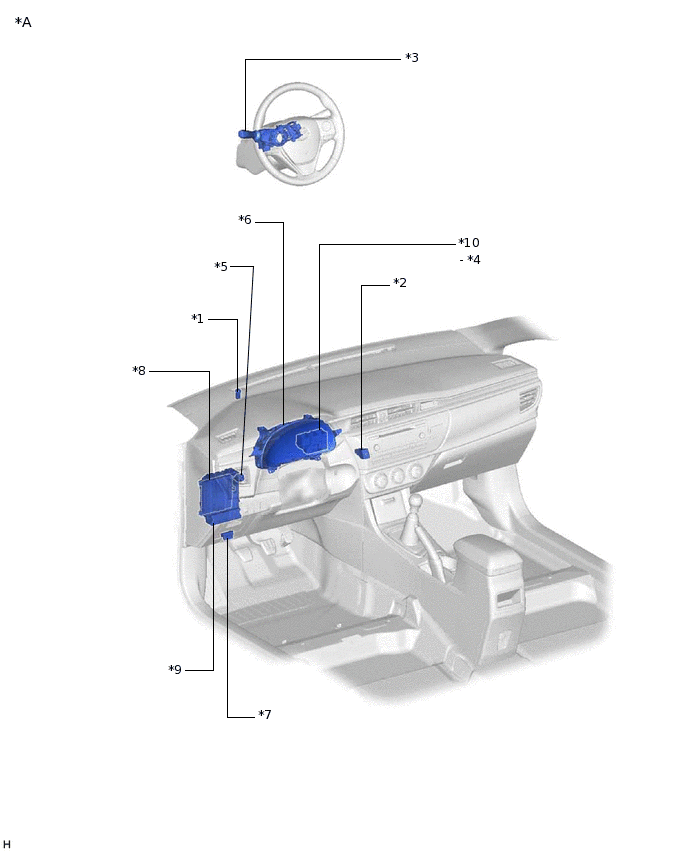

E276306C04

*A

for Sedan (LHD)

-

-

*1

AUTOMATIC LIGHT CONTROL SENSOR

*2

HAZARD WARNING SIGNAL SWITCH ASSEMBLY

*3

HEADLIGHT DIMMER SWITCH ASSEMBLY

*4

FR FOG RELAY (w/ Front Fog Light)

*5

STOP LIGHT SWITCH ASSEMBLY

*6

COMBINATION METER ASSEMBLY

*7

DLC3

*8

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*9

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- TAIL RELAY

- FOG RR RELAY (w/ Rear Fog Light)

- TAIL FUSE

- FOG FR FUSE (w/ Front Fog Light)

- FOG RR FUSE (w/ Rear Fog Light)

*10

NO. 4 RELAY BLOCK ASSEMBLY

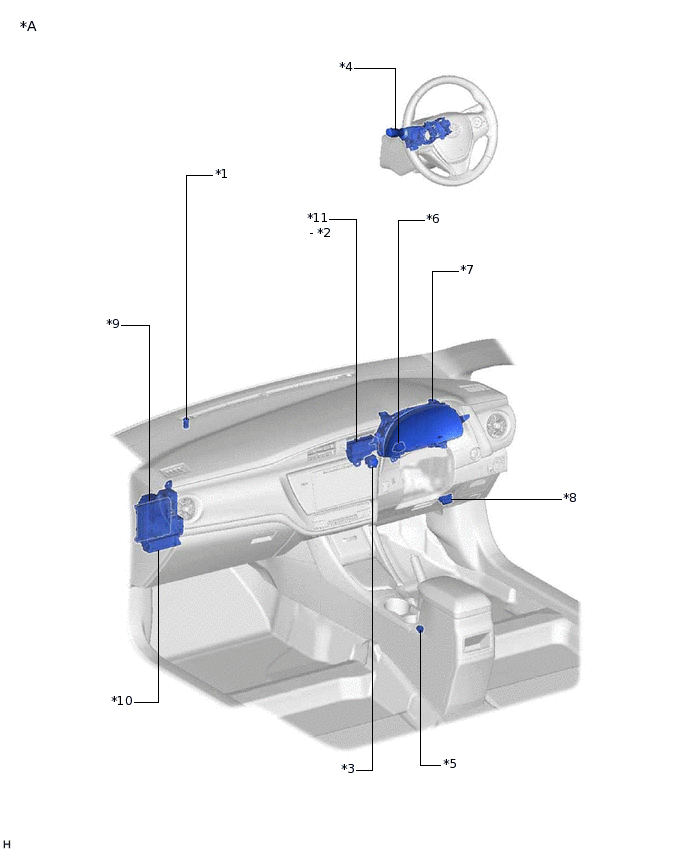

ILLUSTRATION

E321298C01

*A

for Hatchback (RHD) or Wagon (RHD)

-

-

*1

AUTOMATIC LIGHT CONTROL SENSOR

*2

FR FOG RELAY (w/ Front Fog Light)

*3

HAZARD WARNING SIGNAL SWITCH ASSEMBLY

*4

HEADLIGHT DIMMER SWITCH ASSEMBLY

*5

PARKING BRAKE SWITCH

*6

STOP LIGHT SWITCH ASSEMBLY

*7

COMBINATION METER ASSEMBLY

*8

DLC3

*9

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*10

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- TAIL RELAY

- FOG RR RELAY

- TAIL FUSE

- FOG FR FUSE (w/ Front Fog Light)

- FOG RR FUSE

*11

NO. 4 RELAY BLOCK ASSEMBLY

-

-

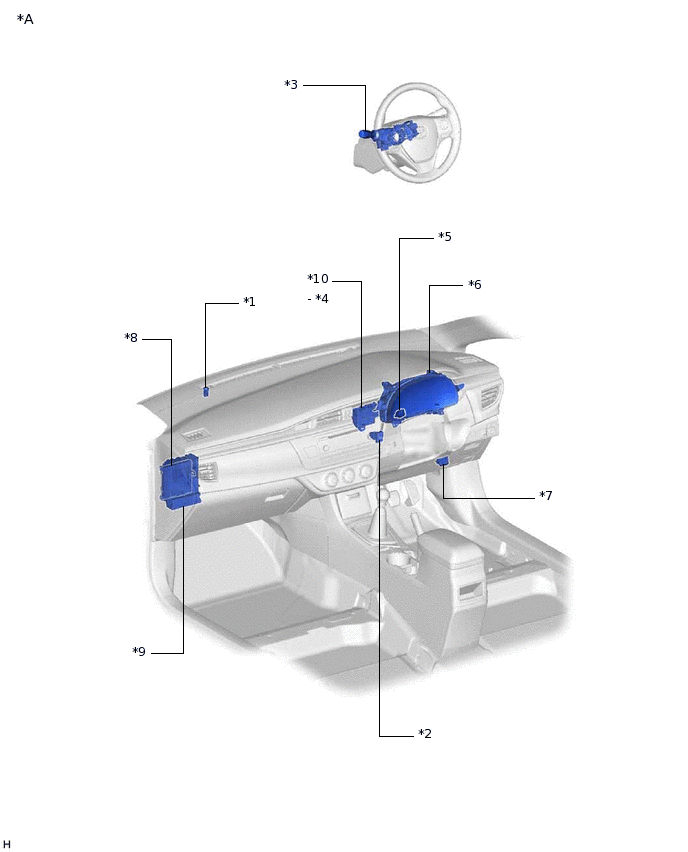

ILLUSTRATION

E276307C02

*A

for Sedan (RHD)

-

-

*1

AUTOMATIC LIGHT CONTROL SENSOR

*2

HAZARD WARNING SIGNAL SWITCH ASSEMBLY

*3

HEADLIGHT DIMMER SWITCH ASSEMBLY

*4

FR FOG RELAY (w/ Front Fog Light)

*5

STOP LIGHT SWITCH ASSEMBLY

*6

COMBINATION METER ASSEMBLY

*7

DLC3

*8

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*9

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- TAIL RELAY

- FOG RR RELAY

- TAIL FUSE

- FOG FR FUSE (w/ Front Fog Light)

- FOG RR FUSE

*10

NO. 4 RELAY BLOCK ASSEMBLY
