HIGH MOUNTED STOP LIGHT ASSEMBLY INSTALLATION

PROCEDURE

1. INSTALL CENTER STOP LIGHT BULB

   1. Install the 4 center stop light bulbs to the bulb holder.

   2.

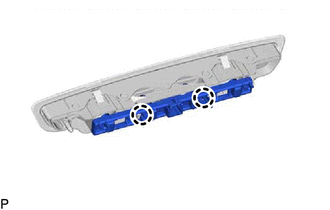

      Engage the 2 claws to install the bulb holder with the 4 center stop light bulbs.

2. INSTALL CENTER STOP LIGHT ASSEMBLY

   1. Connect the washer hose.

   2. Connect the connector.

   3.

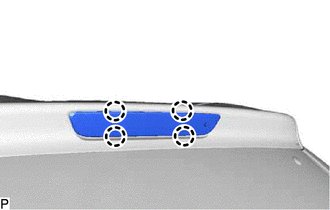

      Engage the 4 claws to install the center stop light assembly.
