CENTER AIRBAG SENSOR ASSEMBLY INSTALLATION

PROCEDURE

1. INSTALL AIRBAG SENSOR ASSEMBLY

   1. Check that the power switch is off.

   2. Check that the cable is disconnected from the auxiliary battery negative (-) terminal.

      CAUTION:

      Wait at least 90 seconds after disconnecting the cable from the auxiliary battery negative (-) terminal to disable the SRS system.

   3.

      Install the airbag sensor assembly with the 3 bolts.

      18 N*m

      184 kgf*cm

      13 ft.*lbf

      Note:

      • If the airbag sensor assembly has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.

      • When installing the airbag sensor assembly, be careful that the SRS wiring does not interfere with or is not pinched between other parts.

      • When the engine switch is first turned on (IG) after the airbag sensor assembly has been replaced, make sure that no one is in the vehicle.

   4. Connect the connectors to the airbag sensor assembly.

      Note:

      When connecting any airbag connector, take care not to damage the airbag wire harness.

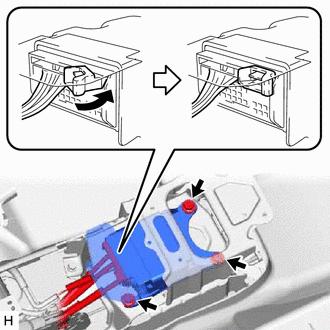

   5. Push in the connector lock lever to lock the airbag connector as shown in the illustration.

   6. Check that the waterproof sheet is properly set.

   7. Check that there is no looseness in the installation parts of the airbag sensor assembly.

2. INSTALL REAR CONSOLE BOX SUB-ASSEMBLY

   Click here

3. CONNECT CABLE TO AUXILIARY BATTERY NEGATIVE TERMINAL

   Note:

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

   Click hereClick hereClick here

4. INSTALL BATTERY SERVICE COVER

   Click here

5. INSTALL DECK BOARD ASSEMBLY

   Click here

6. PERFORM DIAGNOSTIC SYSTEM CHECK

   Click here

7. CHECK SRS WARNING LIGHT

   Click here
