DOOR CONTROL SWITCH REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE

  1. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)

    Click here

  2. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (for Driver Side)

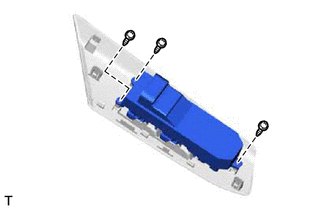

    E268536

    1. Remove the 3 screws and power window regulator master switch assembly from the front upper armrest base panel LH.

      Note:

      Be careful when removing the screws as the switch may fall and become damaged.

  3. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side, w/ Door Control Switch)

    B337002

    1. Using a moulding remover, detach the 6 claws, 2 clips and 2 guides and remove the power window regulator switch assembly with front door armrest base panel.

    2. Using a moulding remover, disconnect the connectors.
