FRONT CRANKSHAFT OIL SEAL COMPONENTS

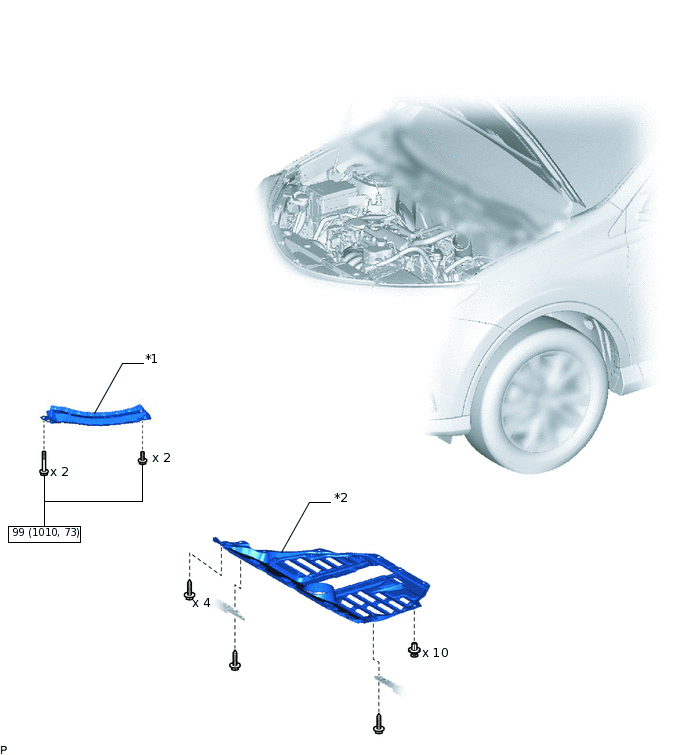

*1	FRONT SUSPENSION MEMBER REINFORCEMENT RH	*2	NO. 1 ENGINE UNDER COVER
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

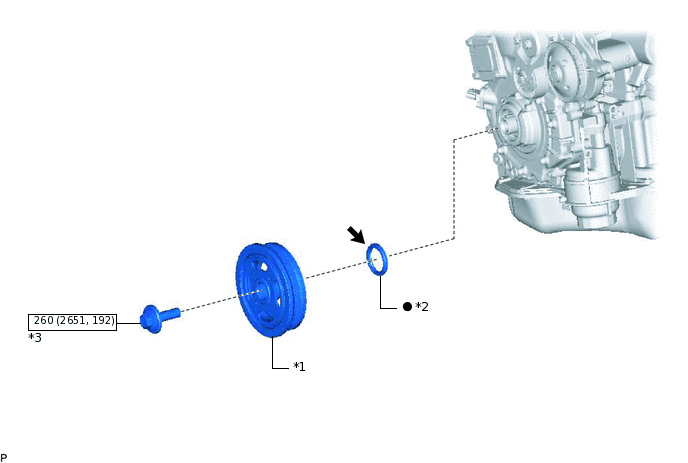

*1	CRANKSHAFT PULLEY	*2	TIMING CHAIN COVER OIL SEAL
*3	CRANKSHAFT PULLEY SET BOLT	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	●	Non-reusable part
	MP grease	-	-

*1

CRANKSHAFT PULLEY

*2

TIMING CHAIN COVER OIL SEAL

*3

CRANKSHAFT PULLEY SET BOLT

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

MP grease

-
