BLOWER UNIT DISASSEMBLY

PROCEDURE

  1. REMOVE RECIRCULATION DAMPER SERVO SUB-ASSEMBLY

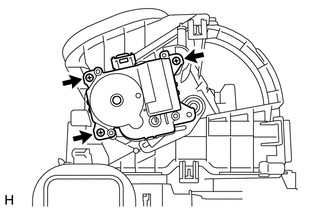

    E197780

    1. Remove the 3 screws and damper servo.

  2. REMOVE BLOWER WITH FAN MOTOR SUB-ASSEMBLY

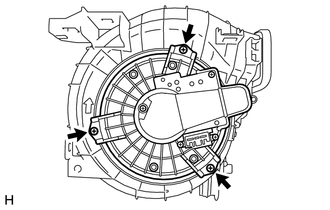

    E197781

    1. Remove the 3 screws and motor.

  3. REMOVE AIR FILTER

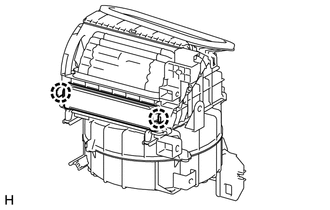

    E197779

    1. Detach the 2 claws and remove the filter case.

    2. Remove the air filter.
