CENTER AIRBAG SENSOR ASSEMBLY REMOVAL

PROCEDURE

  1. REMOVE DECK BOARD ASSEMBLY

    Click here

  2. REMOVE BATTERY SERVICE COVER

    Click here

  3. PRECAUTION

    Note:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery negative (-) terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery negative (-) terminal notice before proceeding with work.

    Click hereClick hereClick hereClick here

  4. DISCONNECT CABLE FROM AUXILIARY BATTERY NEGATIVE TERMINAL

    CAUTION:

    Wait at least 90 seconds after disconnecting the cable from the auxiliary battery negative (-) terminal to disable the SRS system.

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click hereClick hereClick here

  5. REMOVE REAR CONSOLE BOX SUB-ASSEMBLY

    Click here

  6. REMOVE AIRBAG SENSOR ASSEMBLY

    1. Check that the power switch is off.

    2. Check that the cable is disconnected from the auxiliary battery negative (-) terminal.

      CAUTION:

      Wait at least 90 seconds after disconnecting the cable from the auxiliary battery negative (-) terminal to disable the SRS system.

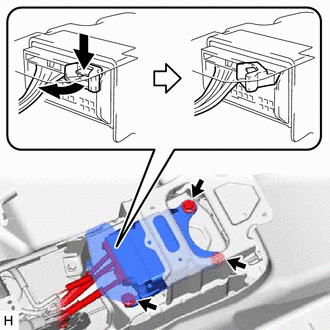

    3. B339273

      Push and pull the connector lock lever to release the connector lock as shown in the illustration.

    4. Disconnect the connectors from the airbag sensor assembly.

      Note:

      When disconnecting any airbag connector, take care not to damage the airbag wire harness.

    5. Remove the 3 bolts and airbag sensor assembly.
