AUDIO AND VISUAL SYSTEM(for Radio and Display Type) Microphone Circuit between Microphone and Radio Receiver

DTC Code DTC Name
Microphone Circuit between Microphone and Radio Receiver

DESCRIPTION

The radio and display receiver assembly and telephone microphone assembly are connected to each other using the microphone connection detection signal lines.

Using this circuit, the radio and display receiver assembly sends power to the telephone microphone assembly, and the telephone microphone assembly sends microphone signals to the radio receiver assembly.

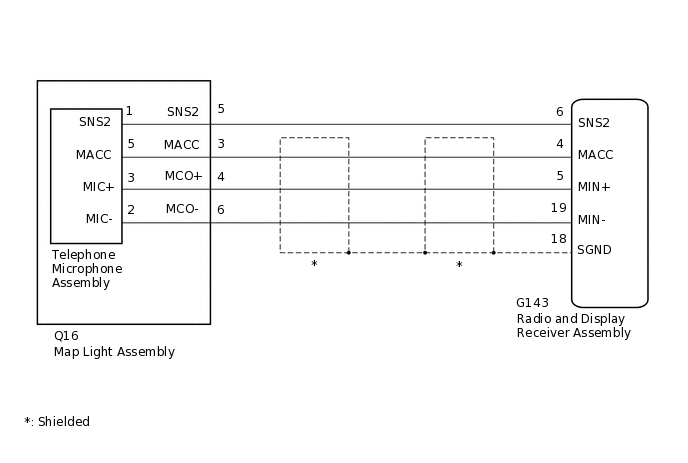

WIRING DIAGRAM

E390637E01

CAUTION / NOTICE / HINT

Note:

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Audio and Visual System.

Click here

PROCEDURE

  1. CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - MAP LIGHT ASSEMBLY)

    1. Disconnect the G143 radio and display receiver assembly connector.

    2. Disconnect the Q16 map light assembly connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      G143-6 (SNS2) - Q16-5 (SNS2)

      Always

      Below 1 Ω

      G143-4 (MACC) - Q16-3 (MACC)

      Always

      Below 1 Ω

      G143-5 (MIN+) - Q16-4 (MCO+)

      Always

      Below 1 Ω

      G143-19 (MIN-) - Q16-6 (MCO-)

      Always

      Below 1 Ω

      G143-6 (SNS2) - Body ground

      Always

      10 kΩ or higher

      G143-4 (MACC) - Body ground

      Always

      10 kΩ or higher

      G143-5 (MIN+) - Body ground

      Always

      10 kΩ or higher

      G143-19 (MIN-) - Body ground

      Always

      10 kΩ or higher

      G143-18 (SGND) - Body ground

      Always

      10 kΩ or higher

    Result

    Proceed to

    OK

    NG
    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  2. INSPECT MAP LIGHT ASSEMBLY

    1. E355981N01

      Remove the map light assembly.

      Click here

    2. Remove the telephone microphone assembly.

      Click here

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      A-3 (MACC) - B-5 (MACC)

      Always

      Below 1 Ω

      A-4 (MCO+) - B-3 (MIC+)

      Always

      Below 1 Ω

      A-5 (SNS2) - B-1 (SNS2)

      Always

      Below 1 Ω

      A-6 (MCO-) - B-2 (MIC-)

      Always

      Below 1 Ω

      A-3 (MACC) - A-4 (MCO+)

      Always

      10 kΩ or higher

      A-3 (MACC) - A-5 (SNS2)

      Always

      10 kΩ or higher

      A-3 (MACC) - A-6 (MCO-)

      Always

      10 kΩ or higher

      A-4 (MCO+) - A-5 (SNS2)

      Always

      10 kΩ or higher

      A-4 (MCO+) - A-6 (MCO-)

      Always

      10 kΩ or higher

      A-5 (SNS2) - A-6 (MCO-)

      Always

      10 kΩ or higher

    Result

    Proceed to

    OK

    NG
    NG

    REPLACE MAP LIGHT ASSEMBLY

    Click here

    OK

  3. CHECK TELEPHONE MICROPHONE ASSEMBLY

    1. Replace the telephone microphone assembly with a new or known good one and check that the malfunction disappears.

      Click here

      OK

      Malfunction disappears.

    Result

    Proceed to

    OK

    NG
    OK

    END (TELEPHONE MICROPHONE ASSEMBLY IS DEFECTIVE)

    NG

    REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

    Click here
