WINDSHIELD / WINDOW GLASS SYSTEM


  1. OUTLINE


    1. Rear Window Defogger System


      • The rear window defogger system uses the heater wires on the rear window glass to defog the rear window glass.

      • This system is controlled by the air conditioning amplifier assembly.

      • The rear window defogger system operates together with the mirror heater system. (Models with mirror heater system)

    2. Windshield Glass/Window Glass (Models with Water Repellent Coating)


      1. The front door glass sub-assemblies are fitted with water repellent coated glass to increase visibility in rain.

        B00833WC05
        *A Models with Water Repellent Coating *B Models without Water Repellent Coating
        *1 Water Repellent Coating *2 Glass
        *a Outside *b Cross section

  2. SPECIFICATION

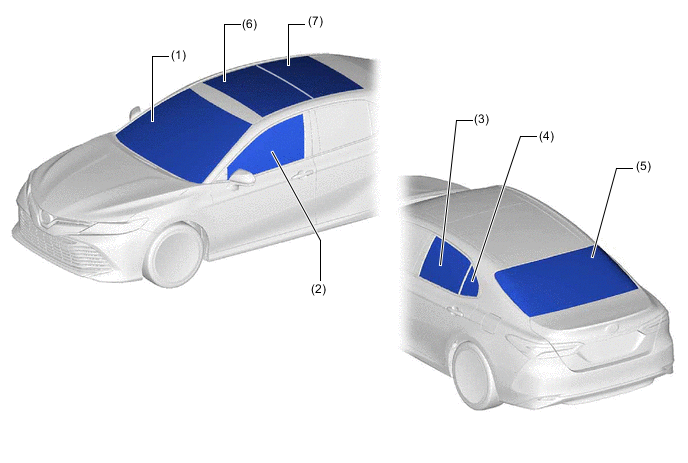

    B0082OQC02
    No. Glass Portion Color Glass Type Visible Light Transmission Rate
    (1) Windshield Glass Green (Top Shade: Blue) Laminated (Acoustic) Minimum 70%
    (2) Front Door Glass Green Tempered (Solar Energy Control, Water Repellent Coating*1) Minimum 70%
    (3) Rear Door Glass Green Tempered (Solar Energy Control) Minimum 70%
    (4) Rear Quarter Glass Green Tempered (Solar Energy Control) Minimum 70%
    (5) Rear Window Glass Green Tempered (Solar Energy Control) Minimum 70%
    (6) Roof Glass (Front)*2 Gray Tempered 20%
    (7) Roof Glass (Rear)*2 Gray Tempered 20%

    *1: Except models for Australia

    *2: Models with panoramic roof

  3. PRECAUTION


    1. Ignition Switch Expressions


      1. The type of ignition switch used on this model differs depending on the specifications of the vehicle. The expressions listed in the table below are used in this section.

        Expressions Ignition Switch (Position) Engine Switch (Condition)
        Ignition Switch off LOCK Off (LOCK)
        Ignition Switch ACC ACC On (ACC)
        Ignition Switch ON ON On (IG)
        Engine Start START On (Start)
