WIPER AND WASHER SYSTEM(w/ Rain Sensor) Power Source Circuit

DTC Code DTC Name
Power Source Circuit

DESCRIPTION

This circuit provides power to the windshield wiper relay assembly.

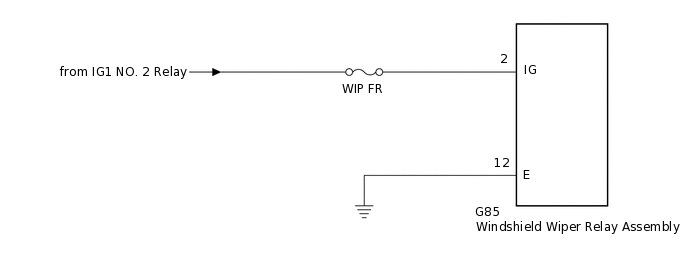

WIRING DIAGRAM

E270600E01

CAUTION / NOTICE / HINT

Note:

Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

  1. CHECK HARNESS AND CONNECTOR (WINDSHIELD WIPER RELAY ASSEMBLY - BATTERY AND BODY GROUND)

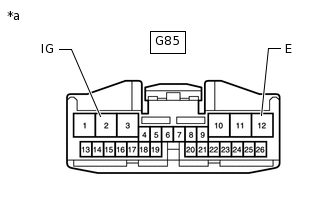

    1. E178174C01

      *a

      Front view of wire harness connector

      (to Windshield Wiper Relay Assembly)

      Disconnect the windshield wiper relay assembly connector.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      G85-12 (E) - Body ground

      Always

      Below 1 Ω

    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection

      Switch Condition

      Specified Condition

      G85-2 (IG) - Body ground

      Ignition switch ON

      11 to 14 V

      Ignition switch off

      Below 1 V

    Result

    Proceed to

    OK

    NG
    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

    Click here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
