WHEEL OPENING MOULDING REMOVAL

CAUTION / NOTICE / HINT

PROCEDURE

1. REMOVE FRONT BUMPER COVER

   Click here

2. REMOVE REAR BUMPER COVER

   Click hereClick here

3. REMOVE FRONT FENDER FRONT OUTSIDE MOULDING LH

   Tip:

   When removing the front fender front outside moulding LH, heat the vehicle body and front fender front outside moulding LH using a heat light.

   Standard

   Item	Temperature
   Vehicle Body	40 to 60°C (104 to 140°F)
   Front Fender Front Outside Moulding LH	20 to 30°C (68 to 86°F)

   Note:

   Do not heat the vehicle body or front fender front outside moulding LH excessively.

   1.

      *a	Double-sided Tape
      *b	Clip A
      *c	Clip B
      	Protective Tape

      Remove the clip labeled A and clip labeled B.

   2. Remove the 5 grommets.

   3. Put protective tape around the front fender front outside moulding LH.

   4. Using a moulding remover, detach the 8 clips.

   5. Detach the double-sided tape to remove the front fender front outside moulding LH.

4. REMOVE REAR WHEEL HOUSE FRONT PLATE LH

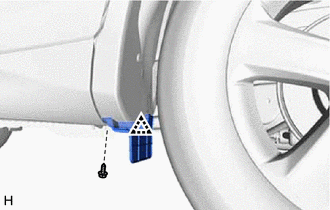

   1. Remove the screw.

   2. Detach the clip and rear wheel house front plate LH.

5. REMOVE CENTER QUARTER OUTSIDE MOULDING LH

   Tip:

   When removing the center quarter outside moulding LH, heat the vehicle body and center quarter outside moulding LH using a heat light.

   Standard

   Item	Temperature
   Vehicle Body	40 to 60°C (104 to 140°F)
   Center Quarter Outside Moulding LH	20 to 30°C (68 to 86°F)

   Note:

   Do not heat the vehicle body or center quarter outside moulding LH excessively.

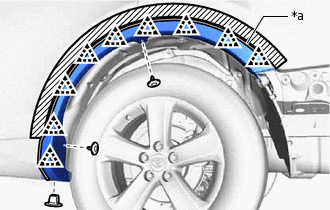

   1.

      *a	Double-sided Tape
      	Protective Tape

      Remove the 2 clips and grommet.

   2. Put protective tape around the center quarter outside moulding LH.

   3. Using a moulding remover, detach the 9 clips.

   4. Detach the double-sided tape to remove the center quarter outside moulding LH.
