PTC HEATER ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE

  1. REMOVE AIR CONDITIONING RADIATOR ASSEMBLY

    Click here

  2. REMOVE QUICK HEATER ASSEMBLY

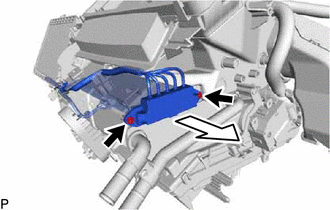

    1. E266390

      Remove the 2 screws and quick heater assembly as shown in the illustration.
