CYLINDER HEAD GASKET REMOVAL

PROCEDURE

  1. REMOVE TIMING CHAIN COVER ASSEMBLY

    Click here

  2. REMOVE EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY

    Click here

  3. REMOVE THROTTLE WITH MOTOR BODY ASSEMBLY

    Click here

  4. REMOVE WATER BY-PASS PIPE (w/ EGR System)

    Click hereClick here

  5. REMOVE EGR COOLER ASSEMBLY (w/ EGR System)

    Click hereClick here

  6. REMOVE NO. 5 WATER BY-PASS HOSE (w/o EGR System)

    Click hereClick here

  7. REMOVE NO. 1 WATER BY-PASS PIPE (w/o EGR System)

    Click hereClick here

  8. REMOVE EGR VALVE ASSEMBLY (w/ EGR System)

    Click hereClick here

  9. REMOVE NO. 3 WATER BY-PASS HOSE

    Click hereClick here

  10. REMOVE NO. 1 WATER BY-PASS HOSE (w/ EGR System)

    Click hereClick here

  11. REMOVE NO. 1 EGR PIPE (w/ EGR System)

    Click hereClick here

  12. REMOVE NO. 3 WATER BY-PASS PIPE (w/o EGR System)

    Click hereClick here

  13. REMOVE INTAKE MANIFOLD

    Click hereClick here

  14. REMOVE FUEL DELIVERY PIPE

    Click here

  15. REMOVE INJECTOR VIBRATION INSULATOR

    Click here

  16. SET NO. 1 CYLINDER TO TDC/COMPRESSION

    Click here

  17. REMOVE TIMING CHAIN GUIDE

    Click here

  18. REMOVE NO. 1 CHAIN TENSIONER ASSEMBLY

    Click here

  19. REMOVE CHAIN TENSIONER SLIPPER

    Click here

  20. REMOVE CHAIN SUB-ASSEMBLY

    Click here

  21. REMOVE NO. 1 CHAIN VIBRATION DAMPER

    Click here

  22. REMOVE CAMSHAFT TIMING GEAR ASSEMBLY

    Click here

  23. REMOVE CAMSHAFT TIMING SPROCKET

    Click here

  24. REMOVE CAMSHAFT HOUSING SUB-ASSEMBLY

    Click here

  25. REMOVE CAMSHAFT BEARING CAP

    Click here

  26. REMOVE OIL CONTROL VALVE FILTER

    Click here

  27. REMOVE CAMSHAFT

    Click here

  28. REMOVE NO. 2 CAMSHAFT

    Click here

  29. REMOVE NO. 1 CAMSHAFT BEARING

    Click here

  30. REMOVE NO. 2 CAMSHAFT BEARING

    Click here

  31. REMOVE NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY

    Click here

  32. REMOVE VALVE LASH ADJUSTER ASSEMBLY

    Click here

  33. REMOVE VALVE STEM CAP

    Click here

  34. REMOVE CYLINDER HEAD SUB-ASSEMBLY

    1. A284098N02

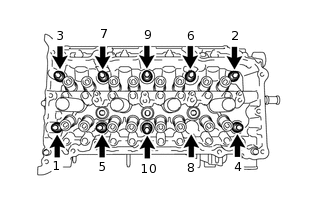

      Using a 10 mm bi-hexagon wrench, uniformly loosen the 10 cylinder head set bolts in the sequence shown in the illustration. Remove the 10 cylinder head set bolts and plate washers.

      Note:

      • Be careful not to drop plate washers into the cylinder head sub-assembly.

      • Head warpage or cracking could result from removing bolts in an incorrect order.

      Tip:

      Be sure to keep the removed parts separate for each installation position.

    2. Remove the cylinder head sub-assembly.

  35. REMOVE CYLINDER HEAD GASKET

    1. Remove the cylinder head gasket from the cylinder block.

  36. INSPECT CYLINDER HEAD SET BOLT

    Click here

  37. INSPECT CYLINDER HEAD SUB-ASSEMBLY

    Click here
