CLUTCH RELEASE CYLINDER(for EA66) COMPONENTS

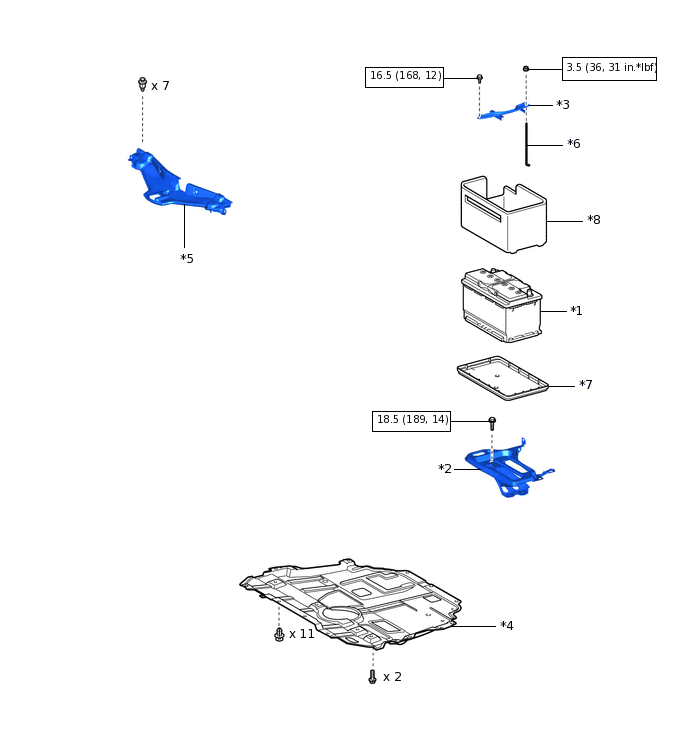

*1	BATTERY	*2	BATTERY CARRIER BRACKET SUB-ASSEMBLY
*3	BATTERY CLAMP SUB-ASSEMBLY	*4	NO. 1 ENGINE UNDER COVER
*5	NO. 2 RADIATOR AIR GUIDE	*6	BATTERY CLAMP BOLT
*7	BATTERY TRAY	*8	BATTERY INSULATOR
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

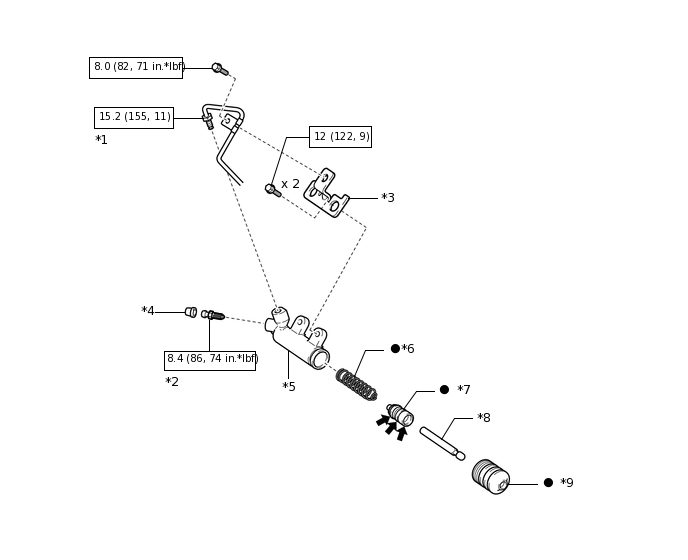

*1	CLUTCH LINE	*2	RELEASE CYLINDER BLEEDER PLUG
*3	CLUTCH LINE BRACKET	*4	BLEEDER PLUG CAP
*5	CLUTCH RELEASE CYLINDER BODY	*6	SPRING
*7	PISTON	*8	PUSH ROD
*9	BOOT	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	●	Non-reusable part
	lithium soap base glycol grease	-	-

*1

CLUTCH LINE

*2

RELEASE CYLINDER BLEEDER PLUG

*3

CLUTCH LINE BRACKET

*4

BLEEDER PLUG CAP

*5

CLUTCH RELEASE CYLINDER BODY

*6

SPRING

*7

PISTON

*8

PUSH ROD

*9

BOOT

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

lithium soap base glycol grease

-
