FRONT AIRBAG SENSOR REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    CAUTION:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).

  2. REMOVE HEADLIGHT ASSEMBLY LH

    1. for Halogen Headlight:

      1. Remove the headlight (Click here).

    2. for HID Headlight:

      1. Remove the headlight (Click here).

  3. REMOVE FRONT AIRBAG SENSOR LH

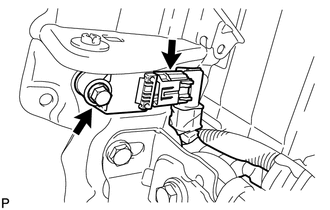

    1. B223177

      Disconnect the connector.

    2. Remove the bolt and front airbag sensor.
