METER / GAUGE SYSTEM

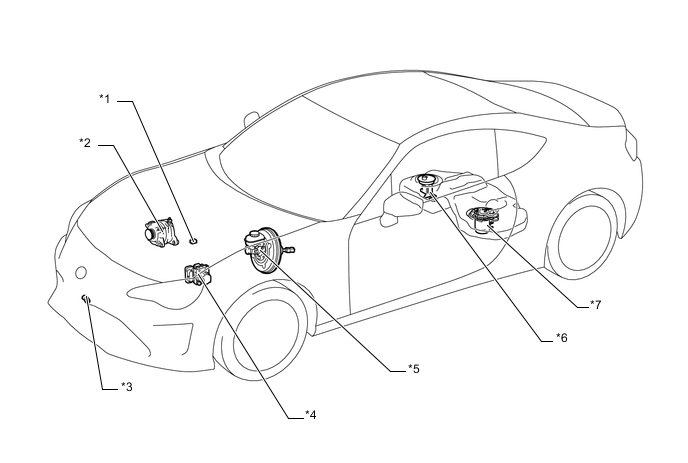

| *1 | Engine Oil Pressure Switch Assembly | *2 | Generator Assembly |
| *3 | Thermistor Assembly | *4 | Skid Control ECU |
| *5 | Brake Fluid Level Warning Switch (Brake Master Cylinder Sub-assembly) | *6 | Fuel Sender Gage Assembly |
| *7 | No.2 Fuel Sender Gage Assembly | - | - |

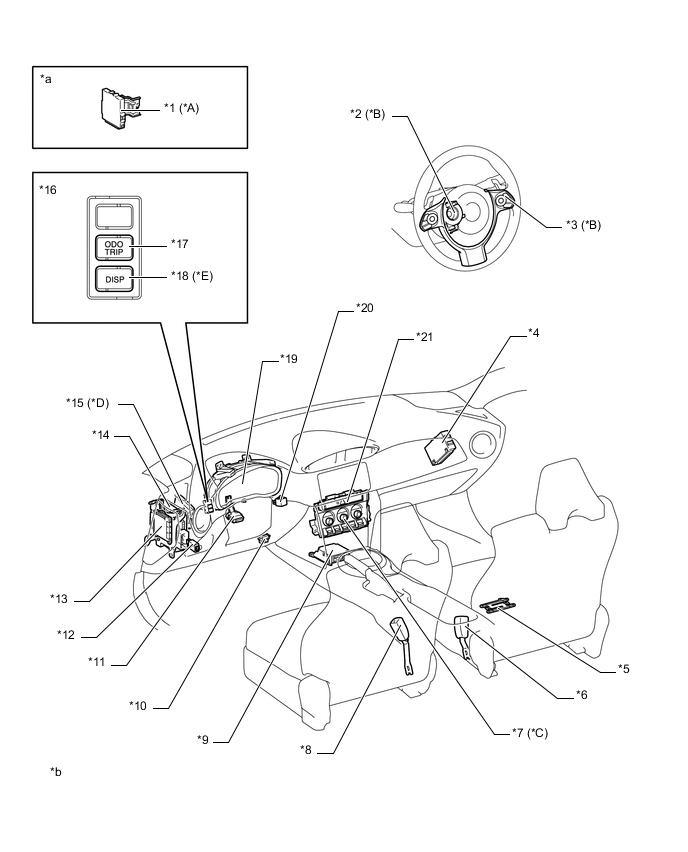

| *A | Models with Entry and Start System | *B | Models with TFT LCD Type Multi-information Display |
| *C | Models with Automatic Air Conditioning System | *D | Models with A/T |
| *E | Except Models with TFT LCD Type Multi-information Display | - | - |
| *1 | Certification ECU (Smart Key ECU Assembly) | *2 | Spiral Cable Sub-assembly |
| *3 | Steering Pad Switch Assembly | *4 | ECM |
| *5 | Occupant Detection Sensor | *6 | Front Seat Inner Belt Assembly (Front Passenger Side) |
| *7 | Air Conditioning Control Assembly (Air Conditioning ECU) | *8 | Front Seat Inner Belt Assembly (Front Driver Side) |
| *9 | Air Bag ECU Assembly | *10 | DLC3 |
| *11 | Headlight Leveling ECU Assembly | *12 | Light Control Rheostat |
| *13 | Main Body ECU (Network Gateway ECU) | *14 | Power Steering ECU Assembly |
| *15 | Transmission Control ECU Assembly | *16 | Trip Switch |
| *17 | ODO/TRIP Switch | *18 | DISP Switch |
| *19 | Combination Meter Assembly | *20 | Turn Signal Flasher Relay |
| *21 | Clock Assembly | - | - |
| *a | Refer to the Service Bulletin for the installation position of the part. | *b | The illustrations shown are examples only. |

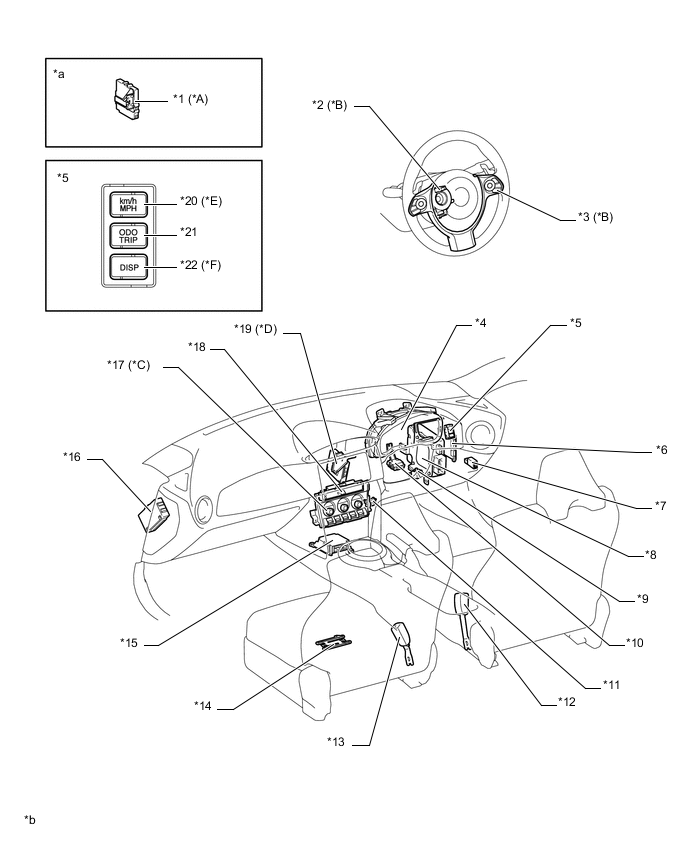

| *A | Models with Entry and Start System | *B | Models with TFT LCD Type Multi-information Display |
| *C | Models with Automatic Air Conditioning System | *D | Models with A/T |
| *E | Models with km/h / MPH switch | *F | Except Models with TFT LCD Type Multi-information Display |
| *1 | Certification ECU (Smart Key ECU Assembly) | *2 | Spiral Cable Sub-assembly |
| *3 | Steering Pad Switch Assembly | *4 | Combination Meter Assembly |
| *5 | Trip Switch | *6 | Main Body ECU (Network Gateway ECU) |
| *7 | Light Control Rheostat | *8 | Power Steering ECU Assembly |
| *9 | Turn Signal Flasher Relay | *10 | Headlight Leveling ECU Assembly |
| *11 | DLC3 | *12 | Front Seat Inner Belt Assembly (Front Driver Side) |
| *13 | Front Seat Inner Belt Assembly (Front Passenger Side) | *14 | Occupant Detection Sensor |
| *15 | Air Bag ECU Assembly | *16 | ECM |
| *17 | Air Conditioning Control Assembly (Air Conditioning ECU) | *18 | Clock Assembly |
| *19 | Transmission Control ECU Assembly | *20 | km/h / MPH Switch |
| *21 | ODO/TRIP Switch | *22 | DISP Switch |
| *a | Refer to the Service Bulletin for the installation position of the part. | *b | The illustrations shown are examples only. |
