CAMSHAFT POSITION SENSOR REMOVAL

PROCEDURE

1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

   Click here

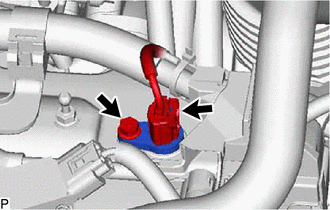

2. REMOVE CAMSHAFT POSITION SENSOR



   1. Disconnect the camshaft position sensor connector.

   2. Remove the bolt and camshaft position sensor.
