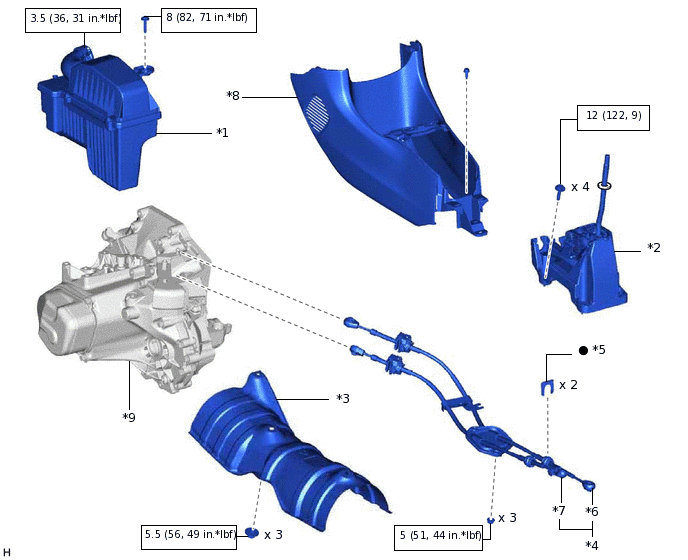

TRANSMISSION CONTROL CABLE COMPONENTS

*1	AIR CLEANER CASE SUB-ASSEMBLY	*2	FLOOR SHIFT LEVER ASSEMBLY
*3	FRONT NO. 1 FLOOR HEAT INSULATOR	*4	TRANSMISSION CONTROL CABLE ASSEMBLY
*5	CLIP	*6	TRANSMISSION CONTROL SHIFT CABLE
*7	TRANSMISSION CONTROL SELECT CABLE	*8	FRONT CONSOLE BOX
*9	MANUAL TRANSAXLE ASSEMBLY	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	●	Non-reusable part

*1

AIR CLEANER CASE SUB-ASSEMBLY

*2

FLOOR SHIFT LEVER ASSEMBLY

*3

FRONT NO. 1 FLOOR HEAT INSULATOR

*4

TRANSMISSION CONTROL CABLE ASSEMBLY

*5

CLIP

*6

TRANSMISSION CONTROL SHIFT CABLE

*7

TRANSMISSION CONTROL SELECT CABLE

*8

FRONT CONSOLE BOX

*9

MANUAL TRANSAXLE ASSEMBLY

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
