КОРПУС КЛАПАНОВ ПОВТОРНАЯ СБОРКА

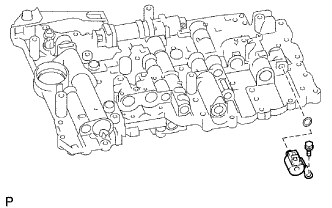

  1. INSTALL SHIFT SOLENOID VALVE S2

    A01DW97E01

    1. Install the O-ring to the shift solenoid valve S2.

    2. Install the bolt and shift solenoid valve S2.

      Torque:
      10 N*m  { 102 kgf*cm, 7 ft.*lbf }

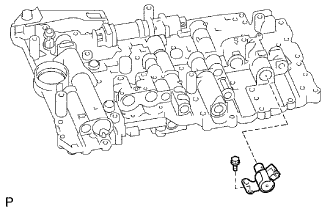

  2. INSTALL SHIFT SOLENOID VALVE S1

    A01DY77E01

    1. Install the O-ring to the shift solenoid valve S1.

    2. Install the bolt and shift solenoid valve S1.

      Torque:
      6.4 N*m  { 65 kgf*cm, 57 in.*lbf }

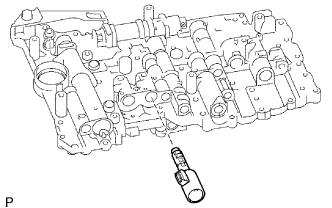

  3. INSTALL SHIFT SOLENOID VALVE SL1

    A01DVNQE01

    1. Install the shift solenoid valve SL1.

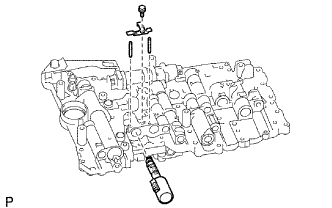

  4. INSTALL SHIFT SOLENOID VALVE SLT

    A01DYCEE01

    1. Install the shift solenoid valve SLT.

    2. Install the bolt, 2 straight pins and solenoid lock plate.

      Torque:
      6.4 N*m  { 65 kgf*cm, 57 in.*lbf }

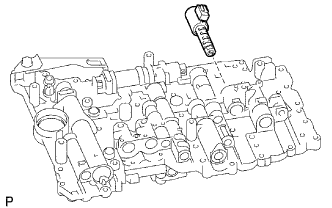

  5. INSTALL SHIFT SOLENOID VALVE SL2

    A01DVFIE01

    1. Install the shift solenoid valve SL2.

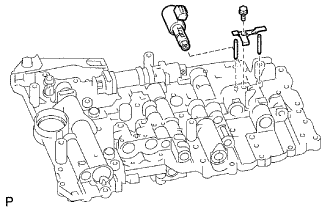

  6. INSTALL SHIFT SOLENOID VALVE SLU

    A01DVRXE01

    1. Install the shift solenoid valve SLU.

    2. Install the bolt, 2 straight pins and solenoid lock plate.

      Torque:
      6.4 N*m  { 65 kgf*cm, 57 in.*lbf }

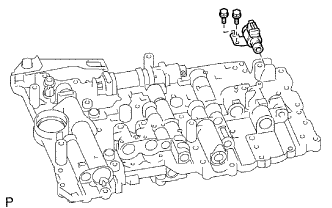

  7. INSTALL SHIFT SOLENOID VALVE SR

    A01E2WUE01

    1. Install the 2 bolts and shift solenoid valve SR.

      Torque:
      6.4 N*m  { 65 kgf*cm, 57 in.*lbf }

  8. INSTALL TRANSMISSION VALVE BODY ASSEMBLY

    A01E05YE01

    1. Align the groove of the manual valve with the pin of the lever.

    2. A01E2JME02

      Install the 19 bolts.

      Torque:
      11 N*m  { 110 kgf*cm, 8 ft.*lbf }

      Tech Tips

      Bolt length:

      25 mm (0.98 in.) for bolt A

      36 mm (1.42 in.) for bolt B
