BLOWER UNIT DISASSEMBLY

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE

  1. REMOVE BLOWER MOTOR WITH FAN SUB-ASSEMBLY

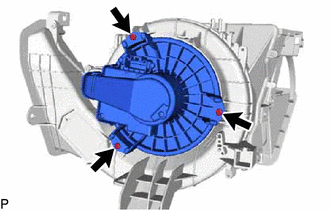

    1. E265981

      Remove the 3 screws and blower motor with fan sub-assembly.

  2. REMOVE NO. 1 BLOWER DAMPER SERVO SUB-ASSEMBLY

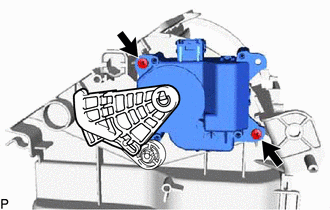

    1. E265983

      Remove the 2 screws and No. 1 blower damper servo sub-assembly.
