FUEL LID LOCK CONTROL CABLE ASSEMBLY(for RHD) REMOVAL

PROCEDURE

  1. REMOVE FRONT SEAT ASSEMBLY LH

    1. for Manual Seat:

      Click here

    2. for Power Seat:

      Click here

  2. REMOVE FRONT SEAT ASSEMBLY RH

    Tip:

    Use the same procedure as for the LH side.

  3. REMOVE PARKING BRAKE LEVER SUB-ASSEMBLY

    Click here

  4. REMOVE PACKAGE TRAY TRIM POCKET SUB-ASSEMBLY (w/ Partition Net)

    Click here

  5. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

    Click here

  6. REMOVE DECK BOARD ASSEMBLY

    Click here

  7. REMOVE REAR NO. 3 FLOOR BOARD

    Click here

  8. REMOVE DECK TRIM SIDE COVER BASE LH

    Click here

  9. REMOVE DECK FLOOR BOX LH

    Click here

  10. REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

    Click here

  11. REMOVE REAR FLOOR FINISH PLATE (w/o Spare Tire, for Compact Spare Tire)

    Click here

  12. REMOVE REAR DECK TRIM COVER (for Full Size Spare Tire)

    Click here

  13. REMOVE REAR SEAT ASSEMBLY

    1. for LH Side:

      Click here

    2. for RH Side:

      Tip:

      Use the same procedure as for the LH side.

  14. REMOVE FRONT DOOR SCUFF PLATE LH

    Click here

  15. REMOVE FRONT DOOR SCUFF PLATE RH

    Tip:

    Use the same procedure as for the LH side.

  16. REMOVE COWL SIDE TRIM BOARD LH

    Click hereClick here

  17. REMOVE COWL SIDE TRIM BOARD RH

    Tip:

    Use the same procedure as for the LH side.

  18. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Click here

  19. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    Tip:

    Use the same procedure as for the LH side.

  20. REMOVE REAR DOOR SCUFF PLATE LH

    Click here

  21. REMOVE REAR DOOR SCUFF PLATE RH

    Tip:

    Use the same procedure as for the LH side.

  22. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Click here

  23. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH

    Tip:

    Use the same procedure as for the LH side.

  24. REMOVE DECK TRIM SERVICE HOLE COVER

    Click here

  25. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    Click here

  26. REMOVE OUTER LAP BELT ANCHOR COVER (for LH Side)

    Click here

  27. REMOVE LOWER CENTER PILLAR GARNISH LH

    Click here

  28. REMOVE LOWER CENTER PILLAR GARNISH RH

    Tip:

    Use the same procedure as for the LH side.

  29. REMOVE FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY

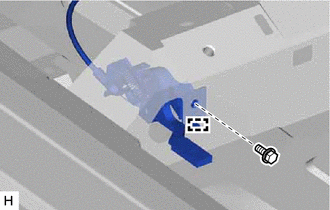

    1. B338192

      Remove the bolt and detach the guide.

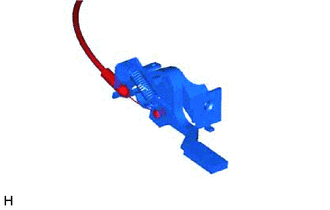

    2. B338193

      Disconnect the fuel lid lock control cable sub-assembly and remove the fuel lid lock open lever sub-assembly.

  30. REMOVE FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY

    1. Partially remove the floor carpet.

      Tip:

      It is not necessary to fully remove the floor carpet. Partially remove it so that the fuel lid lock control cable sub-assembly can be removed.

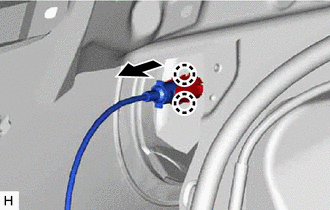

    2. B338141

      Detach the 2 claws and disconnect the fuel lid lock control cable sub-assembly from the fuel filler opening lid lock retainer in the direction indicated by the arrow in the illustration.

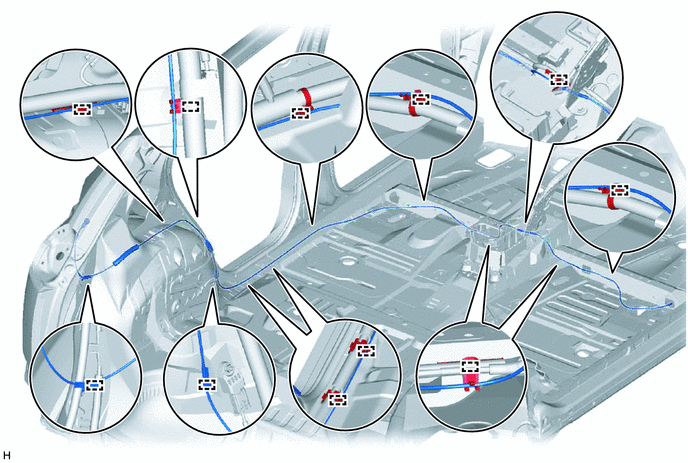

    3. Detach the 12 clamps and remove the fuel lid lock control cable sub-assembly.

      B338140

  31. REMOVE FUEL FILLER OPENING LID LOCK RETAINER

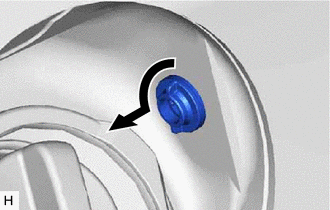

    1. B338142

      Turn the fuel filler opening lid lock retainer counterclockwise and remove the fuel filler opening lid lock retainer as shown in the illustration.
