AUDIO AND VISUAL SYSTEM(for Radio and Display Type) Speaker Circuit
| DTC Code | DTC Name |
|---|---|
| Speaker Circuit |
DESCRIPTION
for 6 Speakers:
If there is a short in a speaker circuit, the radio and display receiver assembly detects it and stops output to the speakers.
Thus sound cannot be heard from the speakers even if there is no malfunction in the radio and display receiver assembly or speakers.
for 11 Speakers:
If there is a short in a speaker circuit, the stereo component amplifier assembly detects it and stops output to the speakers.
Thus sound cannot be heard from the speakers even if there is no malfunction in the stereo component amplifier assembly or speakers.
WIRING DIAGRAM

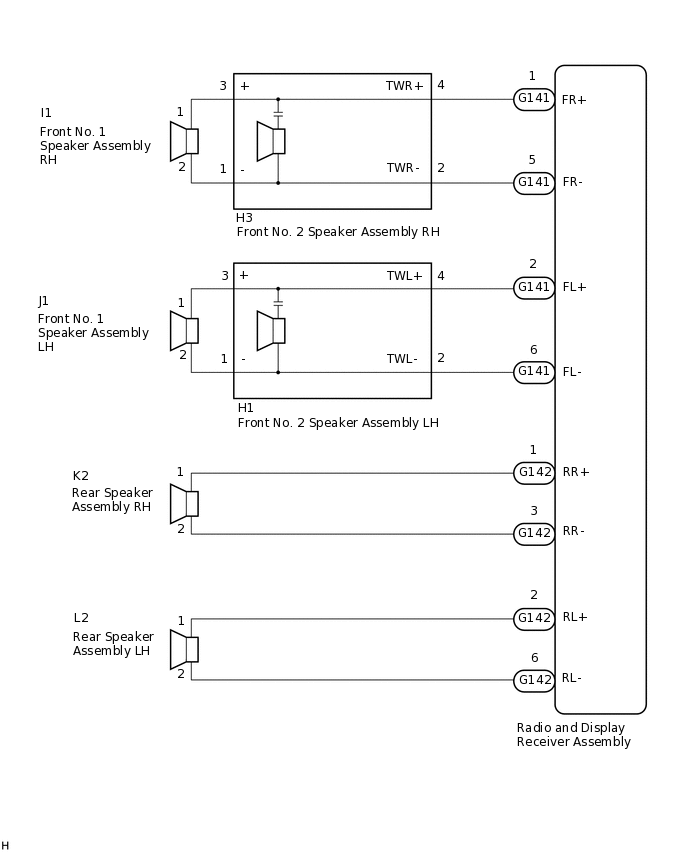

for 6 Speakers:
for 11 Speakers:
CAUTION / NOTICE / HINT
Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Audio and Visual System.
PROCEDURE
CONFIRM MODEL
Choose the model to be inspected.
Result
Result
Proceed to
for 6 Speakers
A
for 11 Speakers
B
B CHECK HARNESS AND CONNECTOR (SPEAKER CIRCUIT)Click here
CHECK HARNESS AND CONNECTOR (SPEAKER CIRCUIT)
*1: for RH Side
*2: for LH Side
Disconnect the G141 and G142 radio and display receiver assembly connectors.
Disconnect the I1*1 and/or J1*2 front No. 1 speaker assembly connector.
Disconnect the H3*1 and/or H1*2 front No. 2 speaker assembly connector.
Disconnect the K2*1 and/or L2*2 rear speaker assembly connector.
Measure the resistance according to the value(s) in the table below.
Standard Resistance
Table 1. for RH Side Tester Connection
Condition
Specified Condition
G141-1 (FR+) - H3-4 (TWR+)
Always
Below 1 Ω
G141-5 (FR-) - H3-2 (TWR-)
Always
Below 1 Ω
H3-3 (+) - I1-1
Always
Below 1 Ω
H3-1 (-) - I1-2
Always
Below 1 Ω
G142-1 (RR+) - K2-1
Always
Below 1 Ω
G142-3 (RR-) - K2-2
Always
Below 1 Ω
G141-1 (FR+) - Body ground
Always
10 kΩ or higher
G141-5 (FR-) - Body ground
Always
10 kΩ or higher
H3-3 (+) - Body ground
Always
10 kΩ or higher
H3-1 (-) - Body ground
Always
10 kΩ or higher
G142-1 (RR+) - Body ground
Always
10 kΩ or higher
G142-3 (RR-) - Body ground
Always
10 kΩ or higher
Table 2. for LH Side Tester Connection
Condition
Specified Condition
G141-2 (FL+) - H1-4 (TWL+)
Always
Below 1 Ω
G141-6 (FL-) - H1-2 (TWL-)
Always
Below 1 Ω
H1-3 (+) - J1-1
Always
Below 1 Ω
H1-1 (-) - J1-2
Always
Below 1 Ω
G142-2 (RL+) - L2-1
Always
Below 1 Ω
G142-6 (RL-) - L2-2
Always
Below 1 Ω
G141-2 (FL+) - Body ground
Always
10 kΩ or higher
G141-6 (FL-) - Body ground
Always
10 kΩ or higher
H1-3 (+) - Body ground
Always
10 kΩ or higher
H1-1 (-) - Body ground
Always
10 kΩ or higher
G142-2 (RL+) - Body ground
Always
10 kΩ or higher
G142-6 (RL-) - Body ground
Always
10 kΩ or higher
Result
Proceed to
OK
NG
NG REPAIR OR REPLACE HARNESS OR CONNECTOR
INSPECT FRONT NO. 1 SPEAKER ASSEMBLY
Remove the front No. 1 speaker assembly.
Inspect the front No. 1 speaker assembly.
Result
Proceed to
OK
NG
INSPECT REAR SPEAKER ASSEMBLY
Remove the rear speaker assembly.
Inspect the rear speaker assembly.
Result
Proceed to
OK
NG
CHECK FRONT NO. 2 SPEAKER ASSEMBLY
Replace the front No. 2 speaker assembly.
Check the malfunction disappears.
OK
Malfunction disappears.
Tip:Connect all the connectors to the front No. 2 speaker assemblies that were disconnected.
When there is a possibility that either the right or left front speaker is defective, inspect by interchanging the right one with the left one.
Perform the above inspection on both LH and RH sides.
Result
Proceed to
OK
NG
OK END (FRONT NO. 2 SPEAKER ASSEMBLY IS DEFECTIVE)
CHECK HARNESS AND CONNECTOR (SPEAKER CIRCUIT)
*1: for RH Side
*2: for LH Side
Disconnect the M33 stereo component amplifier assembly connector.
Disconnect the I1*1 and/or J1*2 front No. 1 speaker assembly connector.
Disconnect the H4*1 and/or H2*2 front No. 2 speaker assembly connector.
Disconnect the K2*1 and/or L2*2 rear speaker assembly connector.
Disconnect the M34 woofer box speaker assembly connector.
Measure the resistance according to the value(s) in the table below.
Standard Resistance
Table 3. for RH Side Tester Connection
Condition
Specified Condition
M33-9 (FR+) - I1-1
Always
Below 1 Ω
M33-24 (FR-) - I1-2
Always
Below 1 Ω
M33-13 (TWR+) - H4-4 (TWR+)
Always
Below 1 Ω
M33-28 (TWR-) - H4-3 (TWR-)
Always
Below 1 Ω
M33-12 (RR+) - K2-1
Always
Below 1 Ω
M33-27 (RR-) - K2-2
Always
Below 1 Ω
M33-9 (FR+) - Body ground
Always
10 kΩ or higher
M33-24 (FR-) - Body ground
Always
10 kΩ or higher
M33-13 (TWR+) - Body ground
Always
10 kΩ or higher
M33-28 (TWR-) - Body ground
Always
10 kΩ or higher
M33-12 (RR+) - Body ground
Always
10 kΩ or higher
M33-27 (RR-) - Body ground
Always
10 kΩ or higher
Table 4. for LH Side Tester Connection
Condition
Specified Condition
M33-14 (FL+) - J1-1
Always
Below 1 Ω
M33-29 (FL-) - J1-2
Always
Below 1 Ω
M33-10 (TWL+) - H2-4 (TWL+)
Always
Below 1 Ω
M33-25 (TWL-) - H2-3 (TWL-)
Always
Below 1 Ω
M33-11 (RL+) - L2-1
Always
Below 1 Ω
M33-26 (RL-) - L2-2
Always
Below 1 Ω
M33-14 (FL+) - Body ground
Always
10 kΩ or higher
M33-29 (FL-) - Body ground
Always
10 kΩ or higher
M33-10 (TWL+) - Body ground
Always
10 kΩ or higher
M33-25 (TWL-) - Body ground
Always
10 kΩ or higher
M33-11 (RL+) - Body ground
Always
10 kΩ or higher
M33-26 (RL-) - Body ground
Always
10 kΩ or higher
Table 5. for Woofer Box Speaker Tester Connection
Condition
Specified Condition
M33-15 (WFR+) - M34-4 (WF+)
Always
Below 1 Ω
M33-30 (WFR-) - M34-1 (WF-)
Always
Below 1 Ω
M33-8 (WFL+) - M34-3 (WF+)
Always
Below 1 Ω
M33-23 (WFL-) - M34-2 (WF-)
Always
Below 1 Ω
M33-15 (WFR+) - Body ground
Always
10 kΩ or higher
M33-30 (WFR-) - Body ground
Always
10 kΩ or higher
M33-8 (WFL+) - Body ground
Always
10 kΩ or higher
M33-23 (WFL-) - Body ground
Always
10 kΩ or higher
Result
Proceed to
OK
NG
NG REPAIR OR REPLACE HARNESS OR CONNECTOR
INSPECT FRONT NO. 1 SPEAKER ASSEMBLY
Remove the front No. 1 speaker assembly.
Inspect the front No. 1 speaker assembly.
Result
Proceed to
OK
NG
INSPECT REAR SPEAKER ASSEMBLY
Remove the rear speaker assembly.
Inspect the rear speaker assembly.
Result
Proceed to
OK
NG
INSPECT WOOFER BOX SPEAKER ASSEMBLY
Remove the woofer box speaker assembly.
Inspect the woofer box speaker assembly.
Result
Proceed to
OK
NG
CHECK FRONT NO. 2 SPEAKER ASSEMBLY
Replace the front No. 2 speaker assembly.
Check the malfunction disappears.
OK
Malfunction disappears.
Tip:Connect all the connectors to the front No. 2 speaker assemblies that were disconnected.
When there is a possibility that either the right or left front speaker is defective, inspect by interchanging the right one with the left one.
Perform the above inspection on both LH and RH sides.
Result
Proceed to
OK
NG
OK END (FRONT NO. 2 SPEAKER ASSEMBLY IS DEFECTIVE)
