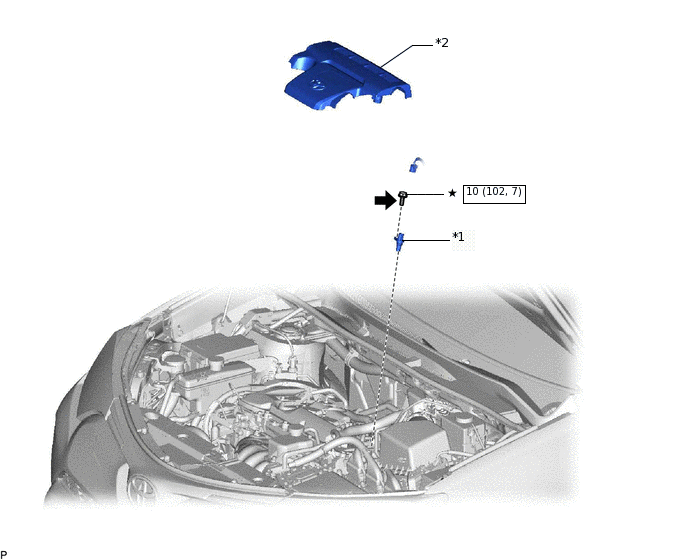

CAMSHAFT POSITION SENSOR COMPONENTS

*1	CAMSHAFT POSITION SENSOR	*2	NO. 1 ENGINE COVER SUB-ASSEMBLY
	Nm (kgfcm, ft.*lbf) : Specified torque		Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent
★	Precoated part	-	-

*1

CAMSHAFT POSITION SENSOR

*2

NO. 1 ENGINE COVER SUB-ASSEMBLY

N*m (kgf*cm, ft.*lbf) : Specified torque

Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

★

Precoated part

-
