SLIDING ROOF SWITCH ASSEMBLY INSPECTION

PROCEDURE

  1. INSPECT MAP LIGHT ASSEMBLY (SLIDING ROOF SWITCH ASSEMBLY)

    1. Remove the map light assembly (sliding roof switch assembly).

      Click here

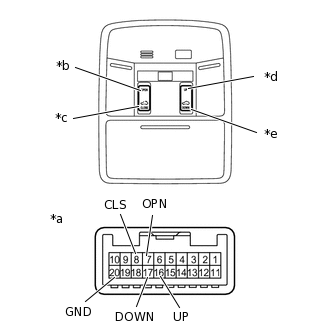

    2. B408084C01

      *a

      Component without harness connected

      (Map Light Assembly (Sliding Roof Switch Assembly))

      *b

      Open Switch

      *c

      Close Switch

      *d

      Up Switch

      *e

      Down Switch

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Switch Condition

      Specified Condition

      20 (GND) - 16 (UP)

      UP switch is pressed

      Below 1 Ω

      UP switch is not pressed

      10 kΩ or higher

      20 (GND) - 17 (DOWN)

      DOWN switch is pressed

      Below 1 Ω

      DOWN switch is not pressed

      10 kΩ or higher

      20 (GND) - 7 (OPN)

      OPEN switch is pressed

      Below 1 Ω

      OPEN switch is not pressed

      10 kΩ or higher

      20 (GND) - 8 (CLS)

      CLOSE switch is pressed

      Below 1 Ω

      CLOSE switch is not pressed

      10 kΩ or higher

      If the result is not as specified, replace the map light assembly (sliding roof switch assembly).

    3. Install the map light assembly (sliding roof switch assembly).

      Click here
